Planetary Gearset

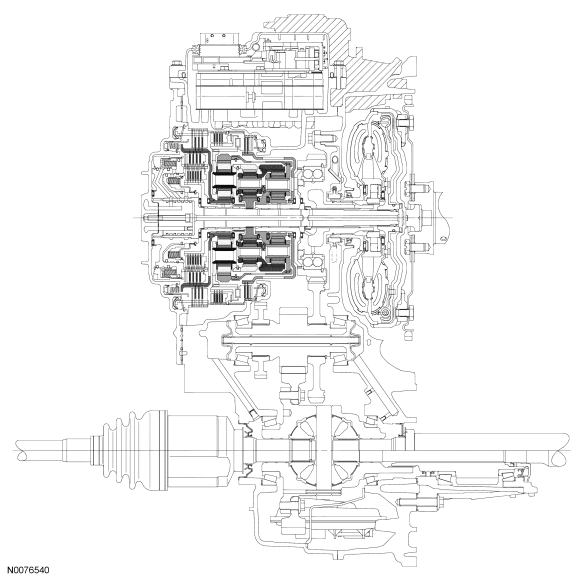

This transaxle has 3 planetary gearsets to provide operation in reverse and 6 forward speeds.
The gearsets are comprised of the following components:
- Front planetary sun gear (part of the front sun gear and shell assembly)
- Front planetary carrier
- Front planetary ring gear
- Center planetary sun gear
- Center planetary carrier
- Center planetary ring gear
- Rear planetary ring gear
- Rear planetary carrier
- Rear planetary sun gear and shell assembly
The front planetary sun gear is splined to the forward (1, 2, 3, 4) clutch and is held stationary in 1st, 2nd, 3rd and 4th gear.
The front planetary carrier is splined to the rear planetary ring gear and transfers power from the rear planetary gearset to the front planetary gearset in 2nd, 3rd, 5th and 6th gear and reverse. The front planetary carrier is splined to the transfer shaft drive gear. The front planetary carrier is the output component for the planetary gearset.
The front planetary ring gear is splined to the center planetary carrier and transfers power from the center planetary gearset to the front planetary gearset in 1st, 2nd, 3rd and 4th gear.
The center planetary sun gear is splined to the input shaft and is used as input to the planetary gearsets in 1st, 2nd, 3rd and 4th gear.
The center planetary ring gear is splined to the rear planetary carrier and transfers power from the center planetary gearset to the rear planetary gearset in 3rd gear, from the rear planetary gearset to the center planetary gearset in 4th gear and is held stationary by the low One-Way Clutch (OWC) and low/reverse clutch in 1st gear and reverse.
The rear planetary carrier is splined to the Overdrive (O/D) (4, 5, 6) clutch hub and transfers power from the input shaft to the rear planetary carrier in 4th, 5th and 6th gear.
The rear planetary sun gear and shell assembly is splined to both the intermediate (2, 6) clutch and the direct (3, 5, R) clutch. The rear planetary sun gear and shell assembly is held stationary by the intermediate (2, 6) clutch in 2nd and 6th gear and is driven by the direct (3, 5, R) clutch in 3rd and 5th gear and reverse.

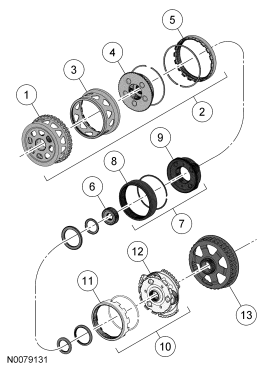

| Item | Part Number | Description |
|---|---|---|
| 1 | 7G304 | Gear and shell assembly - front sun |
| 2 | 7N473 | Front planetary carrier/rear planetary ring gear assembly |
| 3 | 7M022 | Planetary carrier shell - front |
| 4 | 7N470 | Carrier - front planetary |
| 5 | 7G211 | Ring gear - rear planetary |
| 6 | 7G231 | Gear - center planetary sun |
| 7 | 7L192 | Center planetary carrier/front ring gear assembly |
| 8 | 7A153 | Ring gear - front planetary |
| 9 | 7D055 | Planetary carrier assembly - center |
| 10 | 7D491 | Rear planetary carrier/center ring gear assembly |
| 11 | 7D392 | Gear - center ring |
| 12 | 7G226 | Carrier - rear planetary |
| 13 | 7D062 | Gear - rear planetary sun |
