Mechanical Components and Functions: Park
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
The park gear is located on the transfer shaft and gear assembly. There are lugs around the outer diameter of the park gear to allow the park pawl to hold the park gear stationary to the transaxle case, which holds the differential in place and keeps the vehicle from moving.
When the manual control lever is rotated to the PARK position, the park lock works as follows:
- The Transmission Range (TR) sensor rotates the range detent plate which pushes the park pawl actuator rod towards the park pawl.
- The actuator rod pivots the park pawl into the lugs on the park gear, locking the gear stationary to the transaxle case.

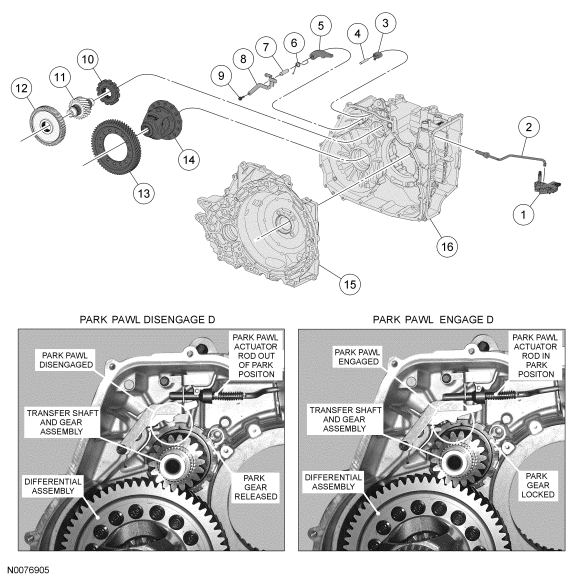

| Item | Part Number | Description |
|---|---|---|
| 1 | 7H557 | Transmission Range (TR) sensor and detent plate |
| 2 | 7D410 | Park pawl actuator rod |
| 3 | 7G101 | Park pawl actuator abutment |
| 4 | 7D412 | Park pawl actuator abutment pin |
| 5 | 7A441 | Park pawl |
| 6 | 7D070 | Park pawl return spring |
| 7 | 7D071 | Park pawl pivot pin |
| 8 | 7D419 | Park pawl pivot pin retaining plate |
| 9 | 7J283 | Park pawl pivot pin retaining plate bolt |
| 10 | 7A233 | Park gear |
| 11 | 7H346 | Transfer shaft |
| 12 | 7H349 | Transfer gear |
| 13 | 7F343 | Differential ring gear |
| 14 | 4207 | Differential assembly |
| 15 | 7975 | Torque converter housing |
