Overdrive (O/D) (4, 5, 6) Clutch
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

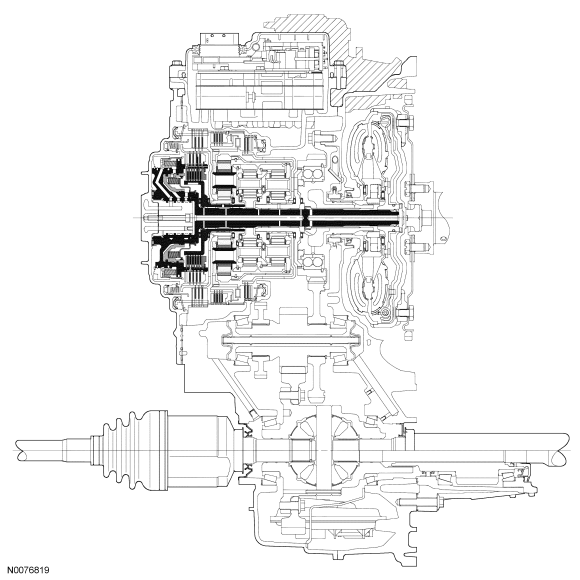

The O/D clutch is a drive clutch that transfers power from the direct/O/D hub and shaft assembly to the rear planetary carrier. The O/D clutch is applied in 4th, 5th and 6th gear.
Hydraulic pressure from the regulator valve in the valve body pushes the O/D clutch piston against the O/D clutch pack to apply the clutch. The input shaft transfers torque to the rear planetary sun gear as a result of the clutch being applied.

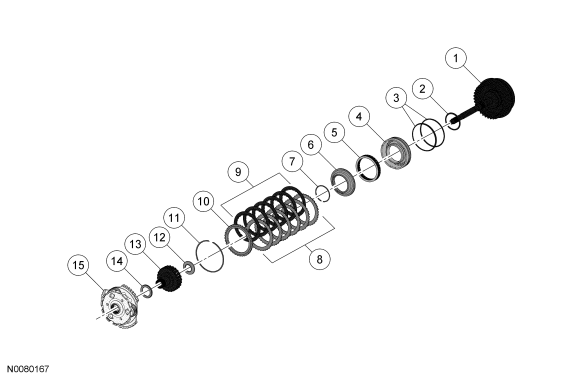

| Item | Part Number | Description |
|---|---|---|
| 1 | 7J251 | Input shaft (part of direct/Overdrive (O/D) clutch assembly) |
| 2 | 7J007 | O/D clutch piston inner seal |
| 3 | 7J008 | O/D clutch piston outer seals |
| 4 | 7G418 | O/D clutch piston |
| 5 | 7H561 | O/D clutch piston return spring |
| 6 | 7J029 | O/D clutch balance piston |
| 7 | 7J010 | O/D clutch balance piston snap ring |
| 8 | 7B442 | O/D clutch steel plates |
| 9 | 7B164 | O/D clutch friction plates |
| 10 | 7B066 | O/D clutch pressure plate |
| 11 | 7M157 | O/D clutch snap ring |
| 12 | 7G239 | O/D clutch hub thrust bearing |
| 13 | 7H351 | O/D clutch hub |
| 14 | 7M102 | Rear sun gear thrust bearing |
| 15 | 7G226 | Rear planetary carrier |
