External sealing
The torque converter housing has a lip-type seal that seals the torque converter hub. The manual lever shaft and halfshafts also use lip-type seals. AWD vehicles do not use a RH halfshaft seal, the transaxle is sealed by the PTU on the RH side.
The torque converter housing is sealed to the transaxle case with silicone sealant. The transaxle cover is sealed to the transaxle case with a reusable gasket.
The main control cover is sealed to the transaxle case and the solenoid body with reusable rubber gaskets and the Turbine Shaft Speed (TSS) sensor is sealed to the transaxle cover with an O-ring seal.
The transmission fluid filler tube is sealed to the main control cover with an O-ring seal that is serviced with the transmission fluid filler tube. The transmission fluid level indicator is sealed to the transmission fluid filler tube with an O-ring seal that is serviced with the transmission fluid level indicator.
The line pressure tap plug, transmission fluid drain plug and the lubrication circuit tap plug have pipe threads and seal when tightened to specification.

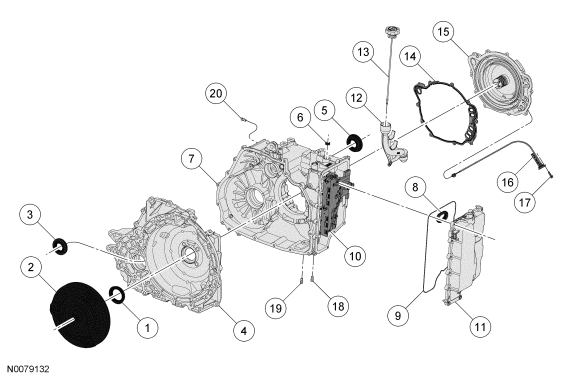

| Item | Part Number | Description |
|---|---|---|
| 1 | 7F401 | Torque converter hub seal |
| 2 | 7902 | Torque converter |
| 3 | 7H260 | RH halfshaft seal (Front Wheel Drive (FWD) only) |
| 4 | 7975 | Torque converter housing |
| 5 | 1177 | LH halfshaft seal |
| 6 | 7F357 | Manual lever shaft seal |
| 7 | 7005 | Transaxle case |
| 8 | 7J213 | Main control cover-to-solenoid body seal |
| 9 | 7F396 | Main control cover gasket |
| 10 | 7Z369 | Solenoid body assembly |
| 11 | 7G004 | Main control cover |
| 12 | 7A228 | Transmission fluid filler tube |
| 13 | 7A020 | Transmission fluid level indicator |
| 14 | 7B343 | Transaxle case-to-transaxle cover gasket |
| 15 | 7211 | Transaxle cover |
| 16 | 7M101 | Turbine Shaft Speed (TSS) sensor |
| 17 | 7J356 | TSS bolt |
| 18 | 7010 | Line pressure tap plug |
| 19 | 7010 | Transmission fluid drain plug |
| 20 | 7010 | Lubrication circuit tap plug |
