Mechanical Components and Functions: Differential

The differential allows the halfshafts and wheels to rotate at different speeds during cornering and transfers power to the Power Transfer Unit (PTU) for All-Wheel Drive (AWD) vehicles.

The differential assembly consists of the following components:

• Differential case (part of the final drive carrier)
• Two pinion gears supported by a pinion shaft
• Two side gears supported by the differential case and halfshafts

When driving in a straight line, both front wheels rotate at relatively the same speed. This means both side gears are rotating at the same speed, as well, while both pinion gears revolve (but do not rotate) with the side gears. During cornering, the wheel on the outside of the turn is forced to rotate faster than the wheel on the inside of the turn. Since the side gears must now rotate at different speeds, the pinion gears rotate on the pinion shaft allowing the drive axles to rotate at different speeds while still transferring output torque.

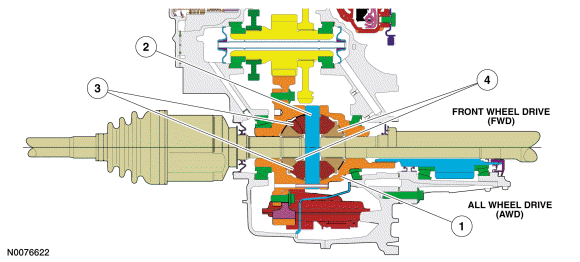

Fig 1: Differential

Courtesy of FORD MOTOR CO.

Fig 2: Differential Cutaway View

Courtesy of FORD MOTOR CO.
