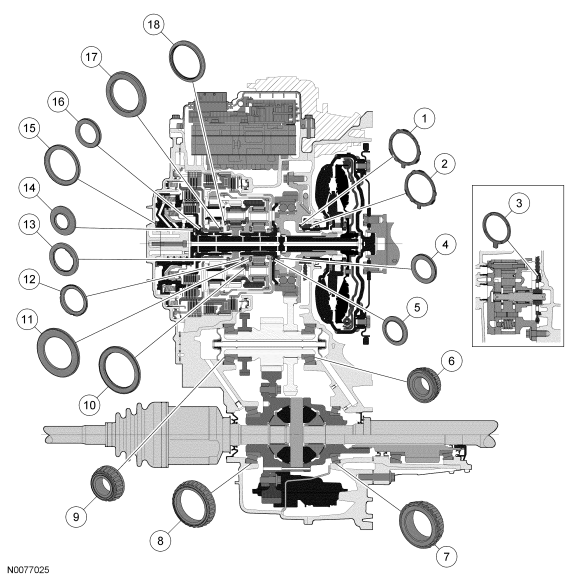

Bushings, Bearings and Thrust Washer Locations
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7D014 | Washer - pump drive sprocket thrust (support side) |
| 2 | 7G099 | Washer - pump drive sprocket thrust |
| 3 | 7G273 | Washer - pump driven sprocket thrust |
| 4 | 7M102 | Bearing and race assembly - stator support No. 11 |
| 5 | 7M102 | Bearing and race assembly - front sun gear No. 10 |
| 6 | 7170 | Cone and roller assembly - transfer shaft bearing |
| 7 | 4221 | Cone and roller assembly - differential bearing |
| 8 | 4242 | Cone and roller assembly - differential bearing |
| 9 | 7170 | Cone and roller assembly - transfer shaft bearing |
| 10 | 7H375 | Bearing and race assembly - front/center planetary No. 8 |
| 11 | 7F244 | Bearing and race assembly - front planetary No. 9 |
| 12 | 7F241 | Bearing and race assembly - center sun gear (front) No. 7 |
| 13 | 7C096 | Bearing and race assembly - center sun gear (rear) No. 6 |
| 14 | 7G239 | Bearing and race assembly - Overdrive (O/D) clutch hub No. 2 |
| 15 | 7H026 | Bearing and race assembly - cover assembly No. 1 |
| 16 | 7M102 | Bearing and race assembly - rear sun gear No. 3 |
| 17 | 7G105 | Bearing and race assembly - rear planetary No. 4 |
| 18 | 7G177 | Bearing and race assembly - center/rear planetary No. 5 |
