Direct (3, 5, R) Clutch Hydraulic Circuits

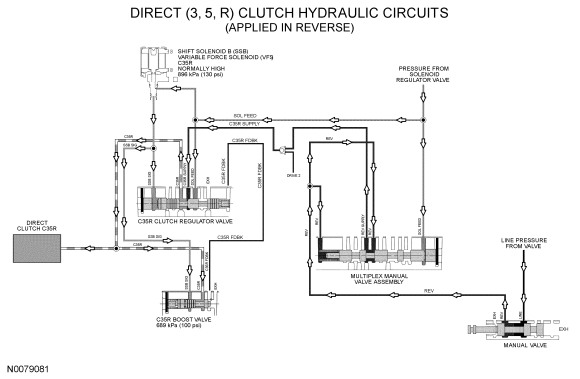

When the direct (3, 5, R) clutch is applied in REVERSE, LINE pressure from the pump is directed to the multiplex manual valve by the manual valve through the REV hydraulic circuit. The multiplex manual valve supplies the direct (3, 5, R) clutch regulator valve with pressure through the REV SUPPLY and C35R SUPPLY hydraulic circuits. The direct (3, 5, R) clutch regulator valve is controlled by SSB and directs regulated C35R SUPPLY pressure to the direct (3, 5, R) clutch through the C35R hydraulic circuit.

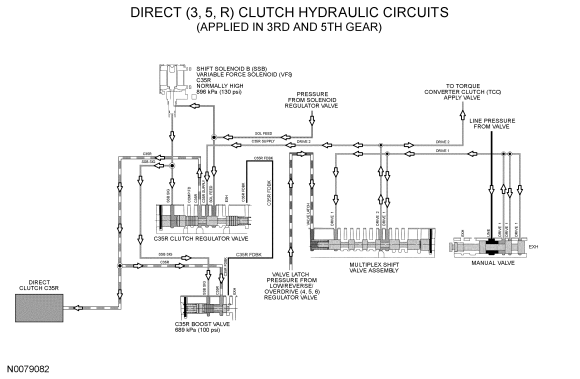

When the direct (3, 5, R) clutch is applied in 3rd and 5th gear, LINE pressure from the pump is directed to the multiplex shift valve by the manual valve through the DRIVE 1 hydraulic circuit. The multiplex shift valve directs the pressure to the direct (3, 5, R) clutch regulator valve through the DRIVE 2/C35R SUPPLY circuits. The direct (3, 5, R) clutch regulator valve is controlled by SSB and directs regulated pressure to the direct (3, 5, R) clutch through the C35R hydraulic circuit.

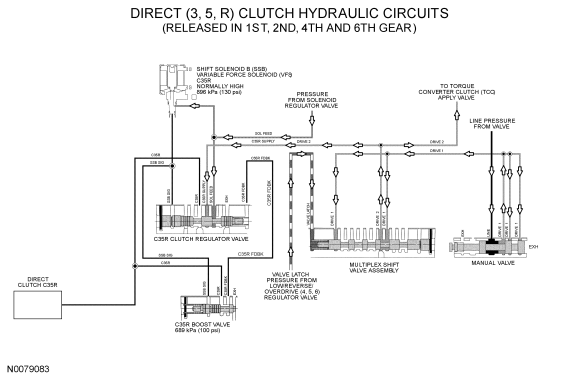

When the direct (3, 5, R) clutch is released in 1st, 2nd, 4th and 6th gear, C35R SUPPLY pressure is supplied to the direct (3, 5, R) clutch regulator valve. Solenoid pressure is not applied to the direct (3, 5, R) clutch regulator valve and the regulator valve blocks the C35R SUPPLY circuit in this position.
