Transfer Shaft and Gear: Assembly

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the park pawl wheel on the transfer shaft.
    2. Fig 1: Identifying Park Pawl Wheel
    GF0044122Courtesy of FORD MOTOR CO.

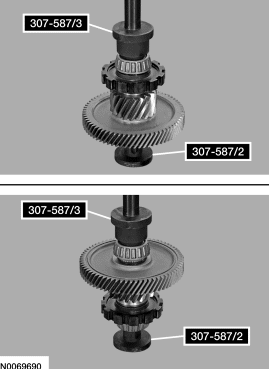

  2. Using the Differential Bearing Installer and Guide 307-587 (307-587/2 and 307-587/3) and a press, install new transfer shaft bearings on the transfer shaft assembly.
    3. Fig 2: Identifying Transfer Shaft Bearings
    GF0044123Courtesy of FORD MOTOR CO.
