Stator Support and Gear Assembly: Assembly

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the Support Solid Seal Installer 307-579/3 on the stator support assembly.
    2. Fig 1: Identifying Support Solid Seal Installer
    GF0044140Courtesy of FORD MOTOR CO.
  2. Install a new seal on Support Solid Seal Installer 307-579/3.
    3. Fig 2: Identifying Seal On Support Solid Seal Installer
    GF0044141Courtesy of FORD MOTOR CO.
  3. Install the Support Solid Seal Installer 307-579/2 on the Support Solid Seal Installer 307-579/3 and slide the seal in to the groove on the stator support assembly.
    4. Fig 3: Sliding Seal Into The Groove On Stator Support Assembly
    GF0044142Courtesy of FORD MOTOR CO.
  4. Remove the Support Solid Seal Installer 307-579 (includes 307-579/2 and 307-579/3) from the stator support assembly.
    5. Fig 4: Identifying Support Solid Seal Installer 307-579
    GF0044143Courtesy of FORD MOTOR CO.
  5. Install the Support Solid Seal Installer 307-579/1 on the stator support assembly to size the seal.
    6. Fig 5: Identifying Support Solid Seal Installer 307-579/1
    GF0044144Courtesy of FORD MOTOR CO.
  6. Install a new gasket on the stator support assembly.
    7. Fig 6: Identifying Stator Support Assembly Gasket
    GF0044145Courtesy of FORD MOTOR CO.
  7. Position the feed tube assembly in place and install the bolts hand  tight.
    8. Fig 7: Identifying Feed Tube Assembly
    GF0044146Courtesy of FORD MOTOR CO.
  8. Tighten the 2 Torx head bolts.
    • Tighten to 7 Nm (62 lb-in).
    9. Fig 8: Tightening Torx Head Bolts
    GF0044147Courtesy of FORD MOTOR CO.
  9. Tighten the 2 hex head bolts.
    • Tighten to 12 Nm (106 lb-in).
    10. Fig 9: Tightening Hex Head Bolts
    GF0044148Courtesy of FORD MOTOR CO.
  10. Install a new input shaft seal on the Support Seal Installer 307-585.
    11. Fig 10: Identifying Input Shaft Seal
    GF0044149Courtesy of FORD MOTOR CO.
  11. Using the Support Seal Installer 307-585, install the input shaft seal.
    12. Fig 11: Identifying Support Seal Installer 307-585
    GF0044150Courtesy of FORD MOTOR CO.
  12. Remove the Support Seal Installer 307-579/1 from the stator support assembly.
    13. Fig 12: Identifying Support Seal Installer 307-579/1
    GF0044151Courtesy of FORD MOTOR CO.
  13. Install the drive sprocket thrust washer.
    14. Fig 13: Identifying Drive Sprocket Thrust Washer
    GF0044152Courtesy of FORD MOTOR CO.

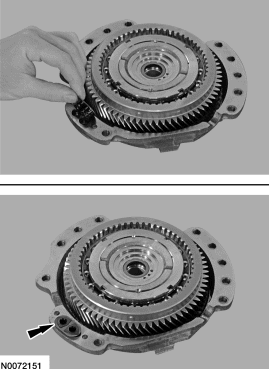

  14. Install a new stator support assembly seal.
    15. Fig 14: Identifying Stator Support Assembly Seal
    GF0044153Courtesy of FORD MOTOR CO.
