Cover Assembly: Disassembly

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

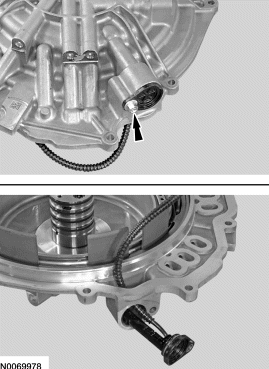

  1. Remove the bolt and the Turbine Shaft Speed (TSS) sensor.
    2. Fig 1: Identifying Turbine Shaft Speed (TSS) Sensor
    GF0044216Courtesy of FORD MOTOR CO.

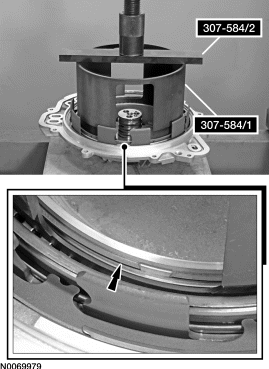

  2. Using the 2-6 Spring Compressor 307-584/1 and 307-584/2, compress the intermediate clutch return spring, using a press and remove the snap ring.
    3. Fig 2: Identifying Intermediate Clutch Return Spring
    GF0044217Courtesy of FORD MOTOR CO.
  3. Remove the 2-6 Spring Compressor 307-584/1 and 307-584/2.
    4. Fig 3: Identifying 2-6 Spring Compressor
    GF0044218Courtesy of FORD MOTOR CO.
  4. Remove the intermediate clutch return spring.
    5. Fig 4: Identifying Intermediate Clutch Return Spring
    GF0044219Courtesy of FORD MOTOR CO.
  5. Remove and discard the intermediate clutch piston.
    6. Fig 5: Identifying Intermediate Clutch Piston
    GF0044220Courtesy of FORD MOTOR CO.

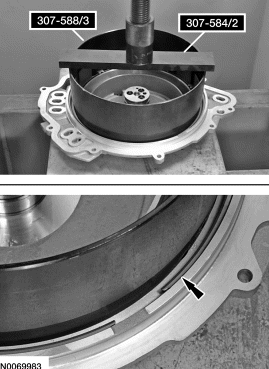

  6. Install the 2-6 Spring Compressor 307-584/2 and the Reverse Clutch Piston And Retaining Ring Set 307-588/3, using a press, compress the low/reverse clutch return spring and remove the snap ring.
    7. Fig 6: Identifying Reverse Clutch Piston And Retaining Ring Set
    GF0044221Courtesy of FORD MOTOR CO.
  7. Remove the 2-6 Spring Compressor 307-584/2 and the Reverse Clutch Piston And Retaining Ring Set 307-588/3.
    8. Fig 7: Identifying Reverse Clutch Piston And Retaining Ring Set
    GF0044222Courtesy of FORD MOTOR CO.
  8. Remove the low/reverse clutch return spring.
    9. Fig 8: Identifying Low/reverse Clutch Return Spring
    GF0044223Courtesy of FORD MOTOR CO.
  9. Remove and discard the low/reverse clutch piston.
    10. Fig 9: Identifying Low/reverse Clutch Piston
    GF0044224Courtesy of FORD MOTOR CO.
  10. Using a suitable tool, remove and discard the 4 Teflon® seals.
    11. Fig 10: Identifying Teflon(R) Seals
    GF0044225Courtesy of FORD MOTOR CO.
  11. Clean and inspect the cover for damage. Install a new cover if damaged.
