Input Shaft Seal

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

	Handle	205-153 (T80T-4000-W)
	Remover/Installer, PTU Input Shaft Seal	308-777 (includes 308-777/1, 308-777/2, 308-777/3, 308-777/4 and 308-777/5)

Clean the Power Transfer Unit (PTU) input shaft opening.

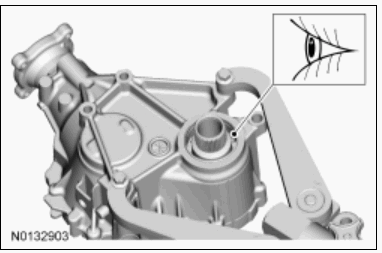

Fig 1: Power Transfer Unit (PTU) Input Shaft Opening
Courtesy of FORD MOTOR CO.
Position the inner seal above the PTU input shaft opening with the spring facing toward the PTU. Using the Seal Installer and the Handle, install the seal.

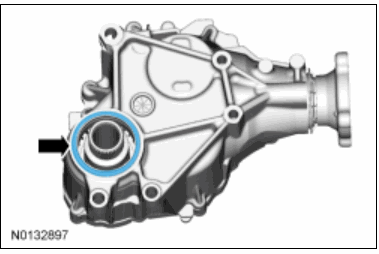

Fig 2: Inner Seal Above The PTU Input Shaft Opening And Using The Seal Installer And Handle
Courtesy of FORD MOTOR CO.
Position the outer seal above the PTU input shaft opening with the spring facing away from the PTU. Using the Seal Installer and the Handle, install the seal.

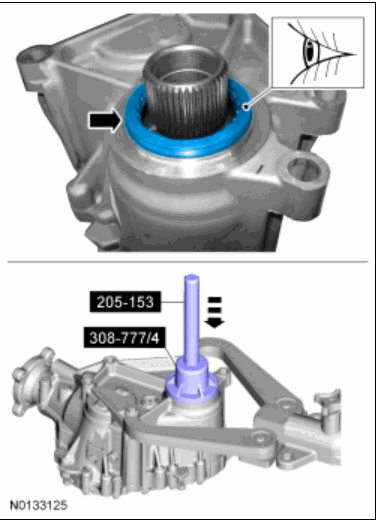

Fig 3: Outer Seal Above The PTU Input Shaft Opening And Using The Seal Installer And Handle
Courtesy of FORD MOTOR CO.
Install the new compression seal.

Fig 4: New Compression Seal
Courtesy of FORD MOTOR CO.
Install the PTU. For additional information, refer to Power Transfer Unit (PTU) .
Fill the PTU as necessary. For additional information, refer to Power Transfer Unit (PTU) Draining and Filling .
