Power Transfer Unit (PTU) Draining and Filling

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada)	WSL-M2C192-A

CAUTION: A new power transfer unit (PTU) must be installed any time the PTU has been submerged in water.

NOTE: The power transfer unit (PTU) is not to be drained unless a leak or contamination is suspected. To drain the PTU fluid, the PTU must be removed from the vehicle. The fluid that is drained may appear black and have a pungent odor. Do not mistake this for contaminated fluid. For additional information, refer to Power Transfer Unit (PTU) .

NOTE: Fill level checks are done in-vehicle only. Let the vehicle sit 10 minutes after the road test before checking the fluid level.

All vehicles

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .

NOTE: Clean the area around the fill plug before removing.

Remove and discard the fill plug.

Fig 1: Identifying Fill Plug

Courtesy of FORD MOTOR CO.

Using a tie-strap, measure 44.5 mm (1.75 in) from the tip and bend it at a 90-degree angle. Measure up from the tip 6.35 mm (0.25 in) and mark a line across the tie-strap at that point.
- The area from the tip of the tie-strap up to the mark will be used to indicate correct fill level.

Fig 2: Measuring 44.5 mm (1.75 in) From Tip & Bend It At A 90-Degree Angle Using A Tie-Strap

Courtesy of FORD MOTOR CO.

Place the tie-strap in the filler opening as shown and check fluid level. The fluid level is correct when the fluid is between the tip of the tie-strap and the mark made 0.25 in (6.35 mm) from the tip.
- Adjust the fluid level as necessary. Slowly add fluid in to the correct fill specification.
- Do not overfill the PTU. This will cause the fluid to be forced out of the unit.

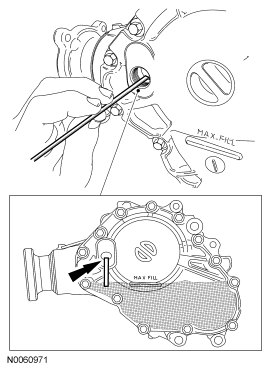

Fig 3: Placing Tie-Strap In Filler Opening

Courtesy of FORD MOTOR CO.

NOTE: Clean the area around the fill plug before removing

Remove and discard the fill plug.
With the vehicle on a flat, level surface, fill the PTU with lubricant. The fluid must be even with the bottom of the fill opening.
- Fluid capacity is 0.53L (18 oz).
  All vehicles
Apply thread sealant to the threads and install the new fill plug.
- Tighten to 20 Nm (177 lb-in).
