Selector Lever: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the shifter assembly.
    1. Install the shifter and the 4 bolts.
      • Tighten to 25 Nm (18 lb-ft).
    2. Connect the electrical connector.

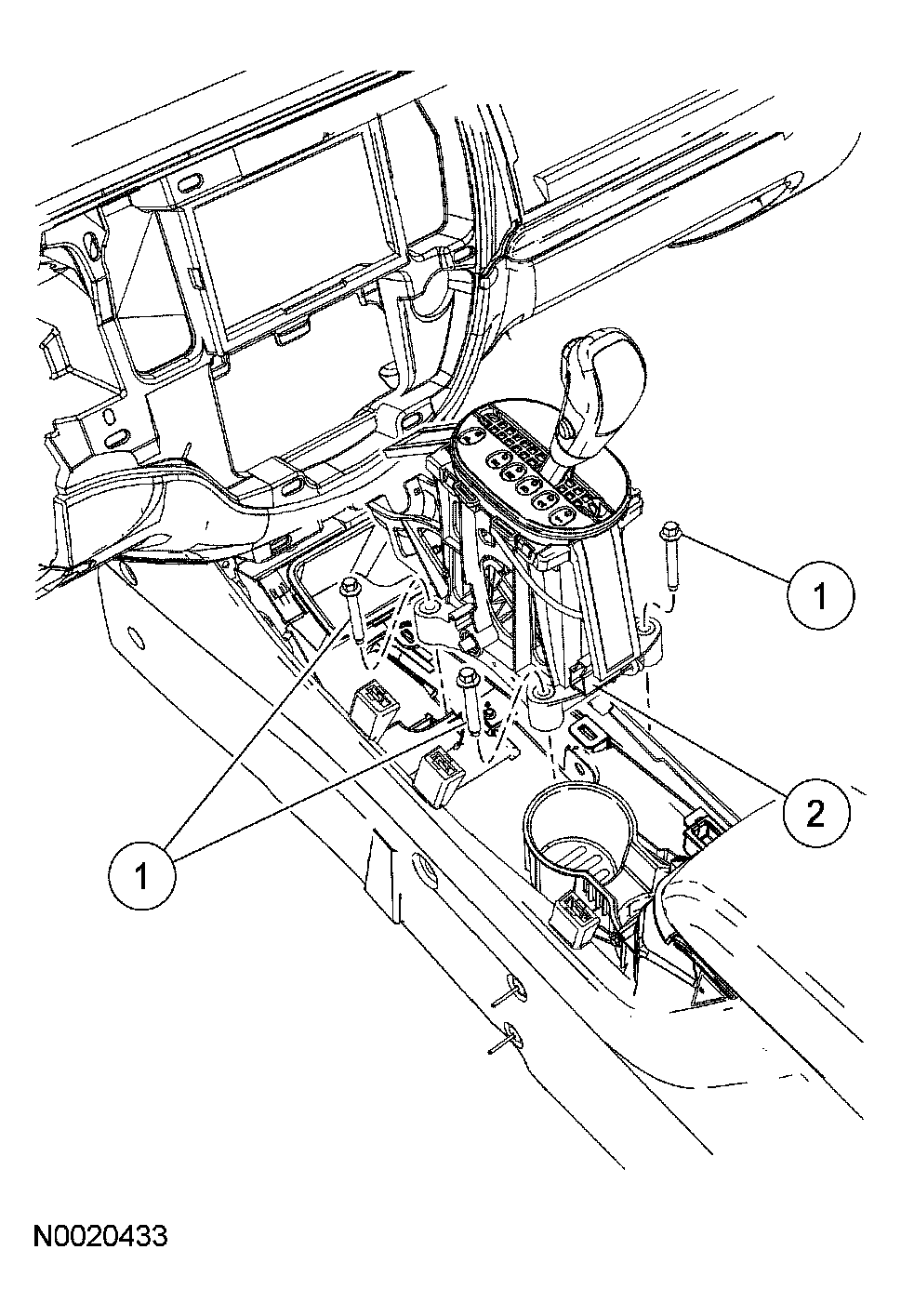

      Fig 1: Connecting Electrical Connector
      G03901617Courtesy of FORD MOTOR CO.
  2. Install the shift cable to the gearshift assembly.
    1. Connect the shift cable end to the gearshift lever.
    2. Install the shift cable to the bracket.
      Fig 2: Installing Shift Cable To Bracket
      G03901615Courtesy of FORD MOTOR CO.
    3. NOTE: If necessary, connect the electrical connector.
    NOTE: If the parking brake was applied to remove the finish panel, release the parking brake.
    Fig 3: Removing/Installing Top Finish Panel
    G03901614Courtesy of FORD MOTOR CO.
  3. Install the top finish panel.
  4. Install the upper shift lever trim ring.
    • To install the upper shift lever trim ring, orient the thick tab on the driver side front of the shifter and press into place.
      Fig 4: Installing Upper Shift Lever Trim Ring
      G03901610Courtesy of FORD MOTOR CO.
  5. Adjust the shift cable. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .
