Selector Lever Cable Adjustment

WARNING: This page is about a different variant/trim than selected.

Place the floor shift selector lever in the (D) position.

Fig 1: Placing Floor Shift Selector Lever in (D) Position
Courtesy of FORD MOTOR CO.

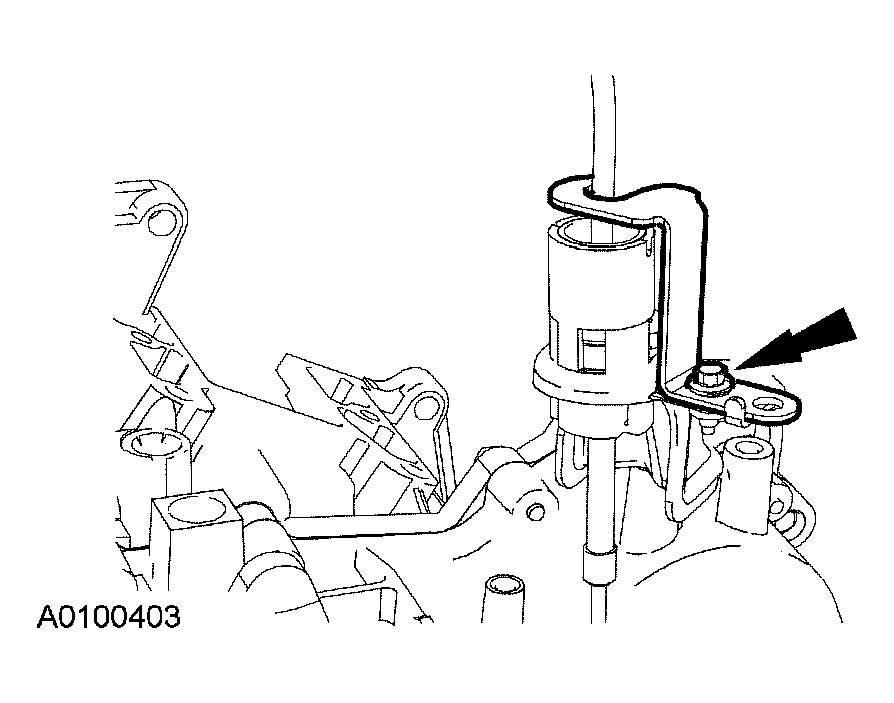

Loosen the bolt for the Z-bracket and rotate the Z-bracket counterclockwise to allow access to the shift cable bracket.

Fig 2: Rotating Z-Bracket Counterclockwise
Courtesy of FORD MOTOR CO.
Loosen the gearshift cable adjuster to adjust the cable by turning it 1/4-turn counterclockwise.

Fig 3: Loosening Gearshift Cable
Courtesy of FORD MOTOR CO.
Place the transmission manual control lever in the DRIVE position.

Fig 4: Identifying Shift Cable End At Manual Lever
Courtesy of FORD MOTOR CO.
Tighten the cable adjustment ring by turning it clockwise 1/4 turn.

Fig 5: Tightening Cable Adjustment Ring
Courtesy of FORD MOTOR CO.
Rotate the Z-bracket clockwise over the shift cable end fitting.
- Tighten to 11 Nm (8 lb-ft).

  Fig 6: Rotating Z-Bracket Clockwise Over Shift Cable Fitting
  Courtesy of FORD MOTOR CO.
