Removal and Installation

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Place the floor shift selector level in the (D) position.

Fig 1: Placing Floor Shift Selector Lever in (D) Position
Courtesy of FORD MOTOR CO.
Gently pry up to remove the upper shift lever trim ring.

Fig 2: Identifying Upper Shift Lever Trim Ring
Courtesy of FORD MOTOR CO.
Remove the top finish panel.

Fig 3: Removing/Installing Top Finish Panel
Courtesy of FORD MOTOR CO.
Remove the shift cable from the gearshift assembly.
1. Disconnect the shift cable end from the gearshift lever.
2. Remove the shift cable from the bracket.

  Fig 4: Removing Shift Cable From Bracket
  Courtesy of FORD MOTOR CO.
Remove the 2 nuts for the shift cable.
- To install, tighten to 10 Nm (89 lb-in).

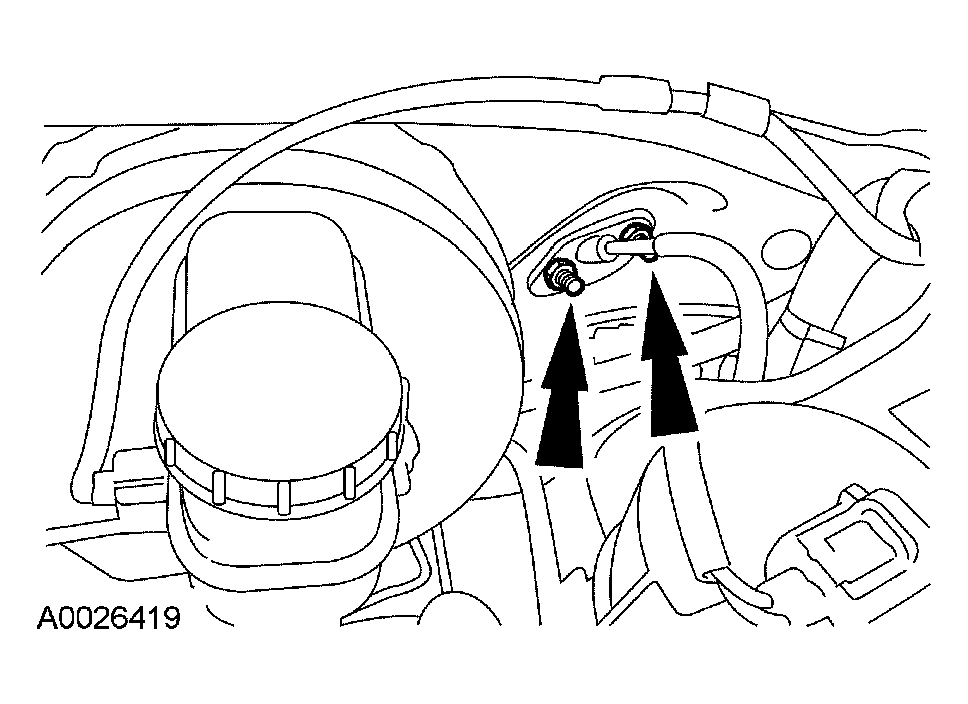

  Fig 5: Removing Nuts For Shift Cable
  Courtesy of FORD MOTOR CO.
Loosen the bolt for the Z-bracket and rotate the Z-bracket counterclockwise to allow access to the shift cable bracket.
- To install, tighten to 11 Nm (8 lb-ft).

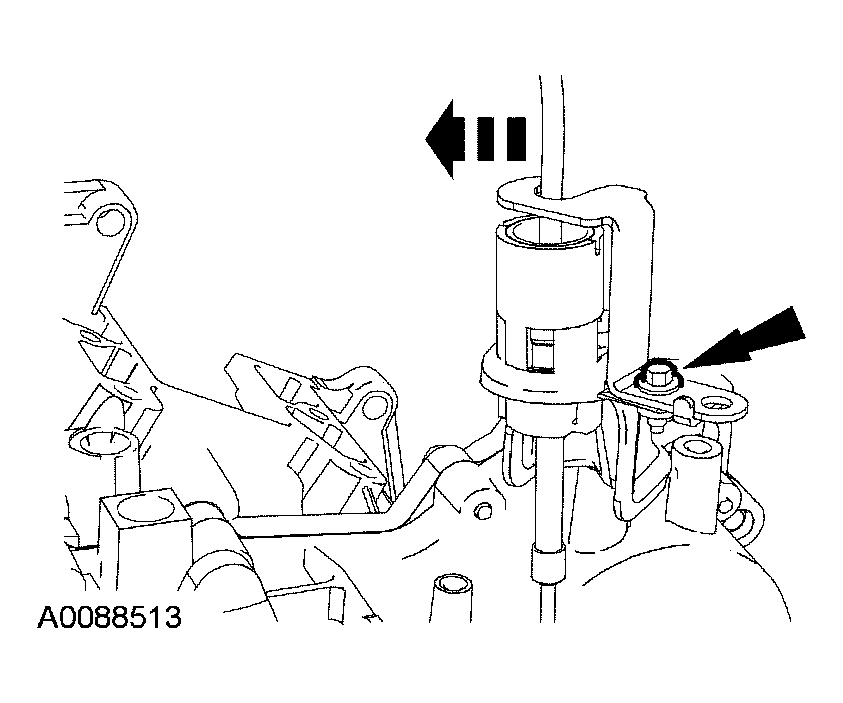

  Fig 6: Rotating Z-Bracket Counterclockwise
  Courtesy of FORD MOTOR CO.
Disconnect the shift cable end from the manual lever.

Fig 7: Identifying Shift Cable End At Manual Lever
Courtesy of FORD MOTOR CO.
Remove the shift cable from the shift cable bracket.

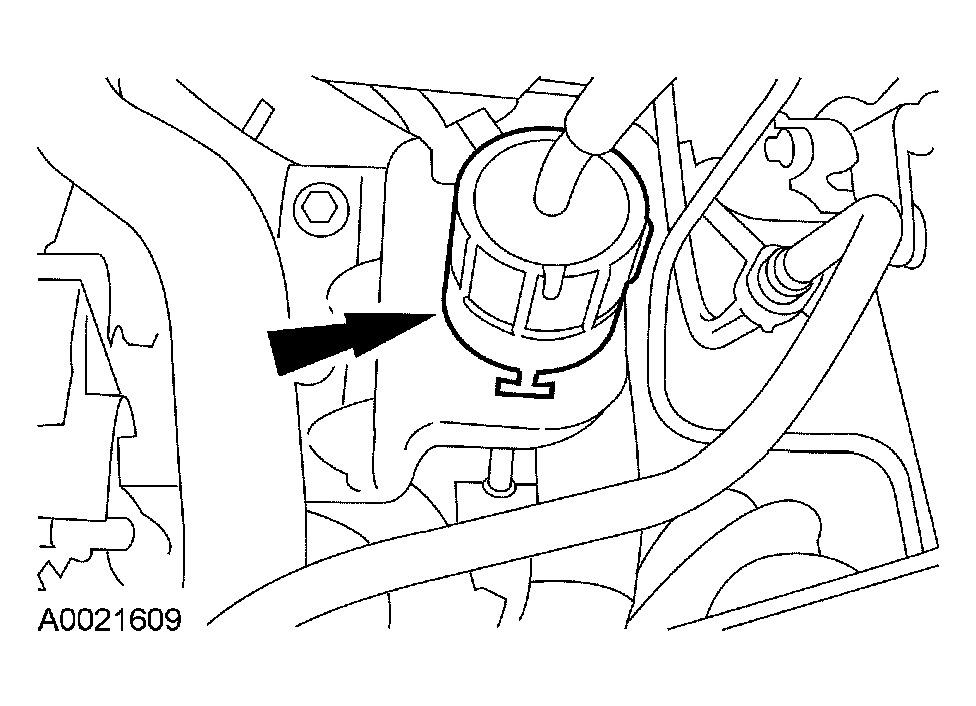

Fig 8: Removing Shift Cable From Shift Cable Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

To install the upper shift lever trim ring, orient the thick tab on the driver side front of the shifter and press into place.
Adjust the shift cable after installation. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .

Fig 9: Adjusting Shift Cable
Courtesy of FORD MOTOR CO.
