Valve Seals: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
CAUTION: The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if you loosen the pulley. Therefore, the engine must be retimed each time the damper is removed. Otherwise severe engine damage can occur.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the camshafts. For additional information, refer to VALVE TRAIN COMPONENTS - EXPLODED VIEW  and CAMSHAFTS .
    3. CAUTION: If the camshafts and valve tappets are to be reused, mark the location of the valve tappets to make sure they are assembled in their original positions.
    NOTE: The number on the valve tappets only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 mm.
  3. Remove and inspect the valve tappets. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
    4. WARNING: Always wear protective goggles when working with compressed air. This can prevent injury. Failure to follow these instructions can result in personal injury.
    CAUTION: Use compressed air at 7 to 10 bars (100 - 150 psi). Do not disconnect the compressed air from the cylinder until the valve spring, valve spring retainer and valve collet is installed.
  4. Unscrew the spark plug on cylinder No. 1 and connect the compressed air supply.
    5. NOTE: Place all parts in order to one side.
  5. Apply compressed air to the cylinder and remove the valve spring.
    • Using the special tools, compress the valve spring and remove the valve collet, using some grease and a small screwdriver.
    • Remove the valve spring retainer and the valve spring.
      Fig 1: Identifying Valve Spring And Valve Spring Retainer Special Tools
      G03897813Courtesy of FORD MOTOR CO.
  6. Using the special tools, remove and discard the valve seal.

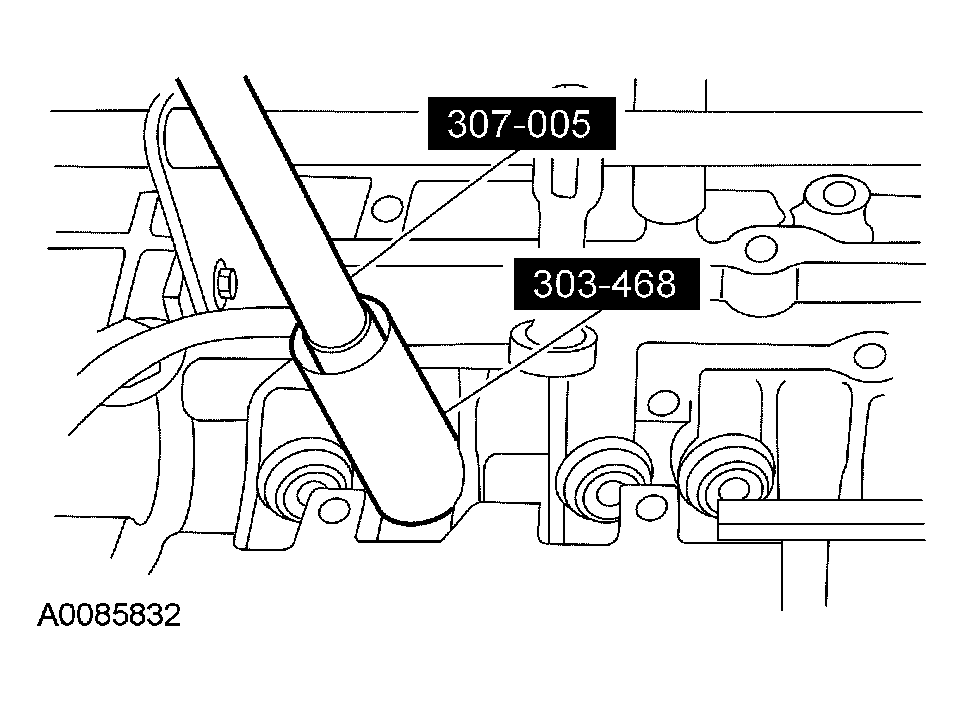

    Fig 2: Removing Valve Seal Using Special Tool
    G03897822Courtesy of FORD MOTOR CO.
