Valve Train Components - Exploded View

WARNING: This page is about a different variant/trim than selected.

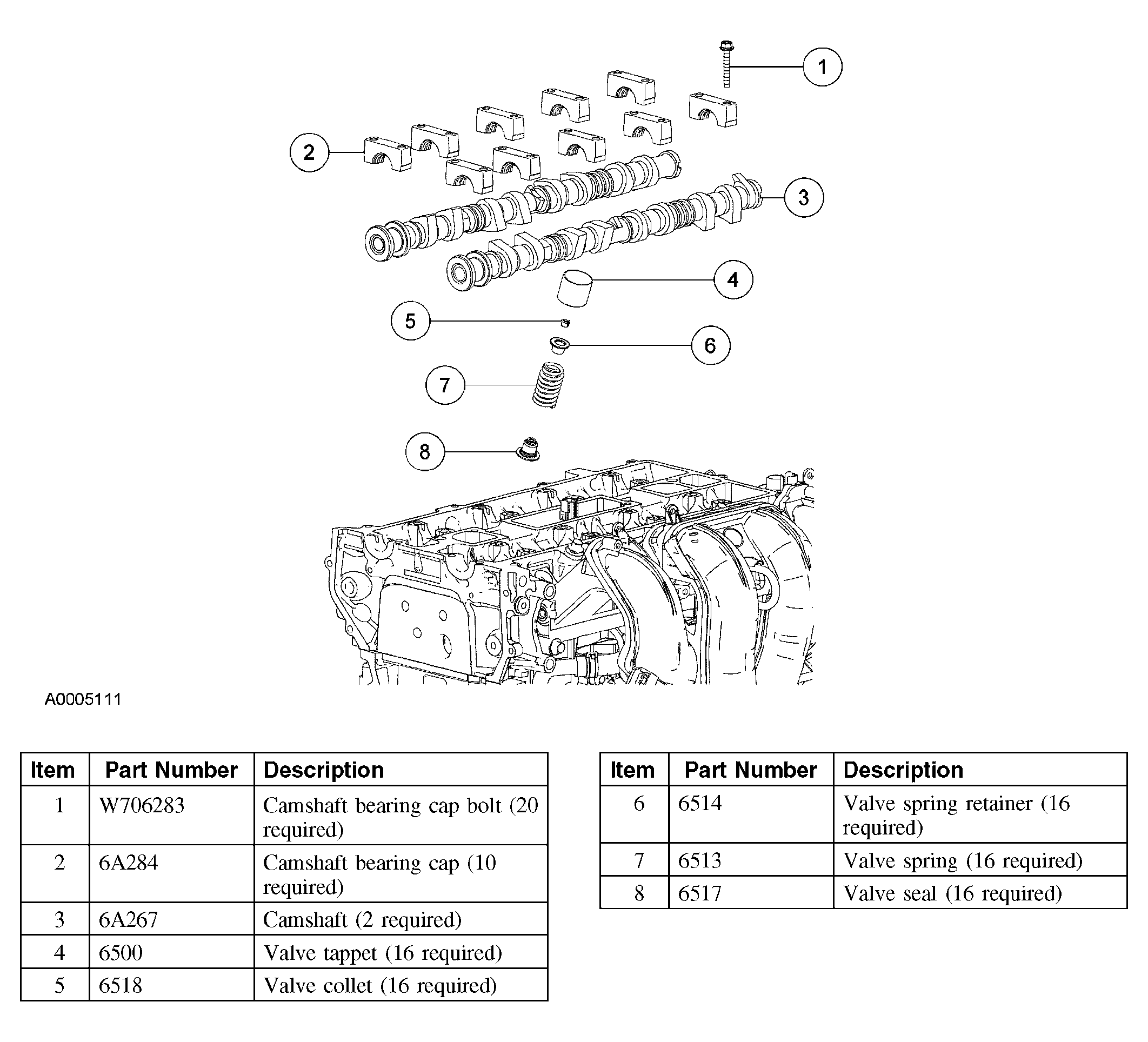

Fig 1: Exploded View Of Valve Train Components
G03898789Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the PROCEDURES .
