Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOL(S) CHART

G03901943
 Slide Hammer 100-001 (T50T-100-A)
G03901944
 Remover, Halfshaft Oil Seal 308-428 (1 Of 2)

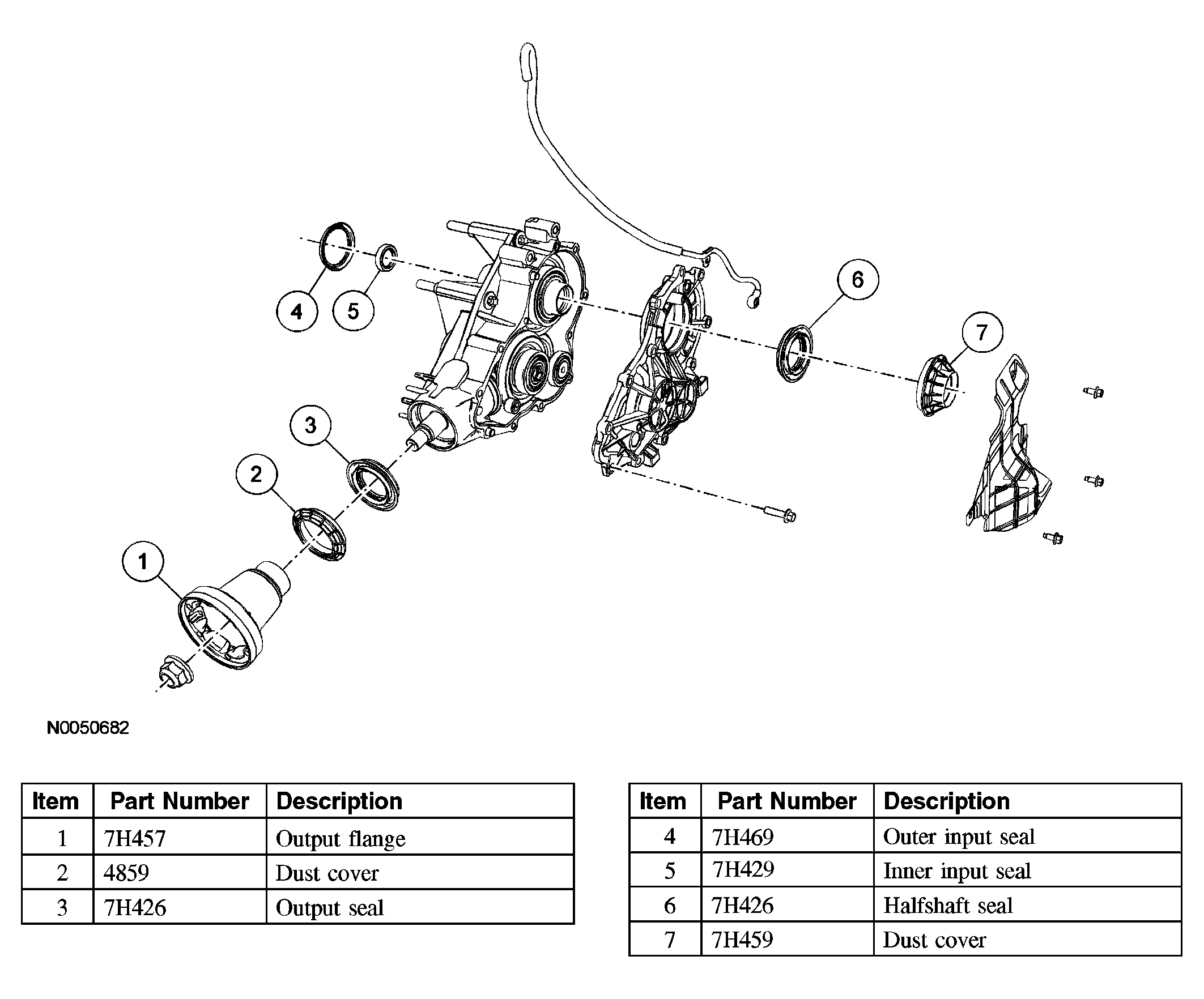

Fig 1: Identifying Power Transfer Unit (PTU) Seals
G03901945Courtesy of FORD MOTOR CO.
  1. Remove the PTU from the vehicle. For additional information, refer to POWER TRANSFER UNIT (PTU) - AUTOMATIC TRANSAXLE  or POWER TRANSFER UNIT (PTU) - MANUAL TRANSAXLE .

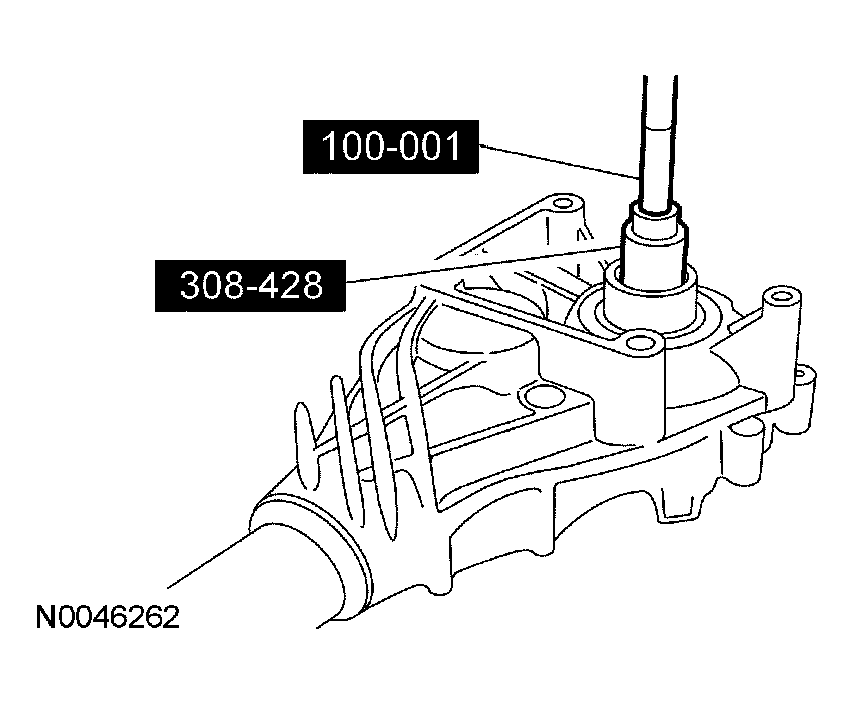

  2. Using the special tools, remove the outer input seal.
    Fig 2: Removing Outer Input Seal
    G03901946Courtesy of FORD MOTOR CO.
  3. Remove the dust cover and the halfshaft seal.
  4. Remove the dust cover and the output seal.
  5. Remove the PTU vent tube.
    Fig 3: Removing Dust Cover And Halfshaft Seal
    G03901947Courtesy of FORD MOTOR CO.

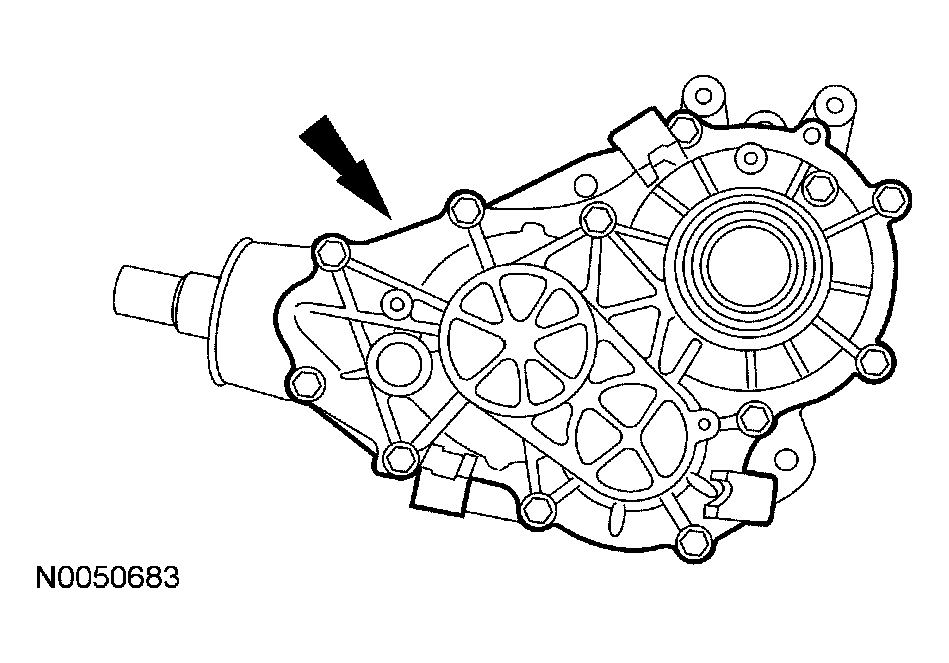

  6. Remove the PTU cover bolts and the PTU cover, then remove the gears.
    Fig 4: Removing PTU Cover Bolts And PTU Cover
    G03901948Courtesy of FORD MOTOR CO.
  7. Remove the inner input seal.
  8. Clean the PTU sealing surface.
