Power Transfer Unit (PTU) - Manual Transaxle

WARNING: This page is about a different variant/trim than selected.

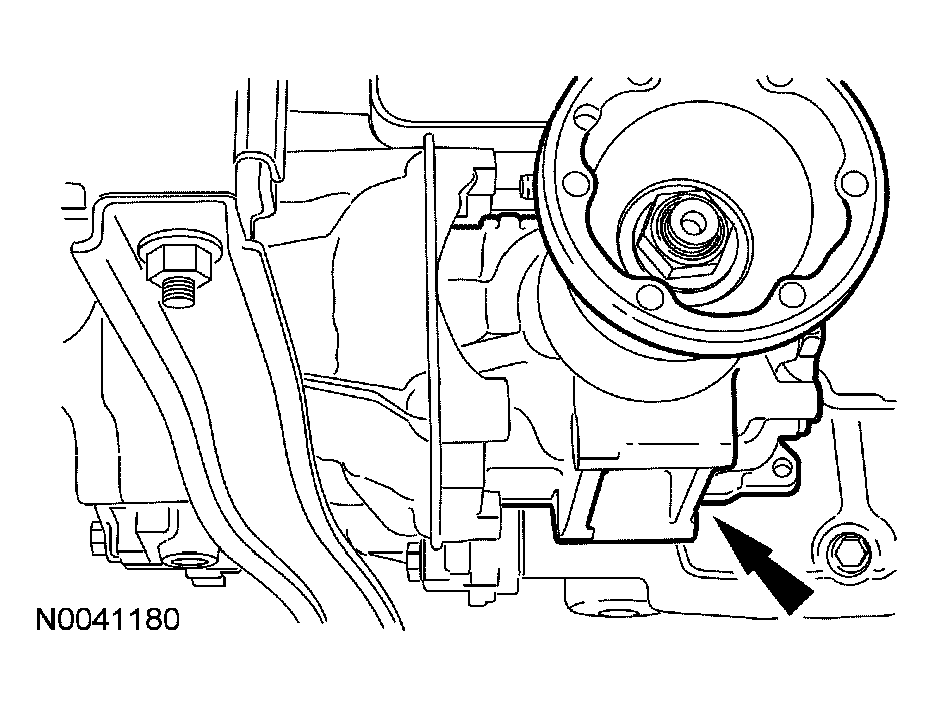

Fig 1: Identifying Power Transfer Unit (PTU) - Manual Transaxle

Courtesy of FORD MOTOR CO.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Remove the drain plug and drain the transaxle fluid.

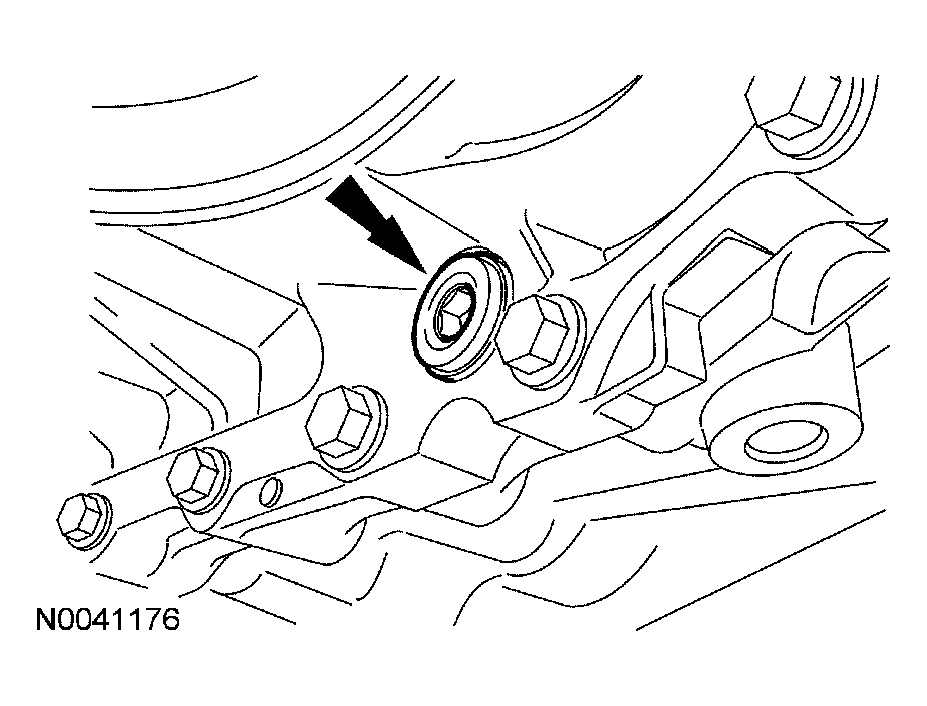

Fig 2: Removing Drain Plug And Drain Transaxle Fluid
Courtesy of FORD MOTOR CO.
Remove the driveshaft. For additional information, refer to DRIVESHAFT .
Remove the 4 bolts and the crossmember brace.

Fig 3: Removing Bolts And Crossmember Brace
Courtesy of FORD MOTOR CO.
Remove the 2 transfer case-to-transaxle bolts.

Fig 4: Removing Transfer Case-To-Transaxle Bolts
Courtesy of FORD MOTOR CO.
Remove the 2 transfer case-to-transaxle nuts.

Fig 5: Removing Transfer Case-To-Transaxle Nuts
Courtesy of FORD MOTOR CO.
Using a suitable stud remover, remove the front stud.

Fig 6: Removing Front Stud
Courtesy of FORD MOTOR CO.
Pull the transfer case outward, off the rear stud. Maneuver the transfer case away from the exhaust and remove from the vehicle.

Fig 7: Pulling Transfer Case Outward Off Rear Stud
Courtesy of FORD MOTOR CO.
If necessary, clean the threads of the front stud.

Fig 8: Cleaning Threads Of Front Stud
Courtesy of FORD MOTOR CO.
Remove and discard the O-ring seal.

Fig 9: Removing And Discard O-Ring Seal
Courtesy of FORD MOTOR CO.
