Crankshaft Rear Oil Seal: Removal

    Automatic Transmission Vehicles

  1. Remove the flexplate. For additional information, refer to FLEXPLATE .

    2. Manual Transmission Vehicles

  2. Remove the flywheel. For additional information, refer to FLYWHEEL .

    3. All Vehicles

  3. Using the special tools, remove the crankshaft oil slinger.

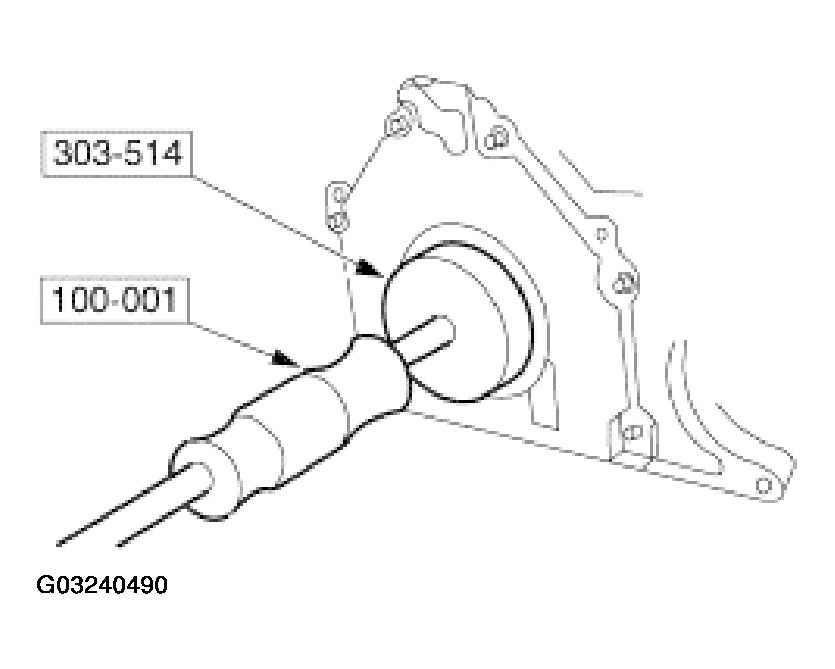

    Fig 1: Removing Crankshaft Oil Slinger
    G03240490Courtesy of FORD MOTOR CO.
  4. Using the special tools, remove the crankshaft rear oil seal.

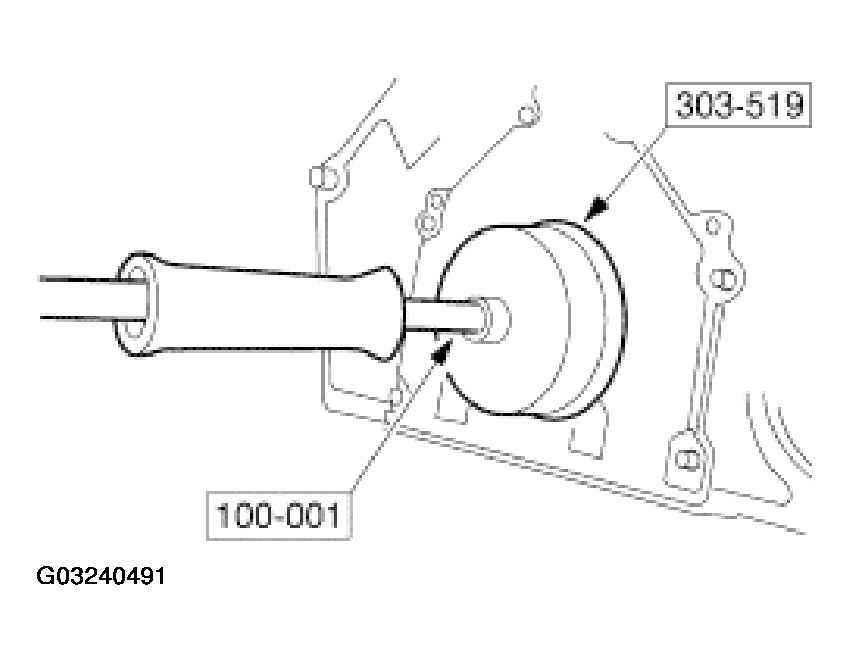

    Fig 2: Removing Crankshaft Rear Oil Seal
    G03240491Courtesy of FORD MOTOR CO.
