In-Vehicle Repair: Flexplate

  1. Remove the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .
  2. Remove the bolts in the sequence shown, and remove the flexplate.

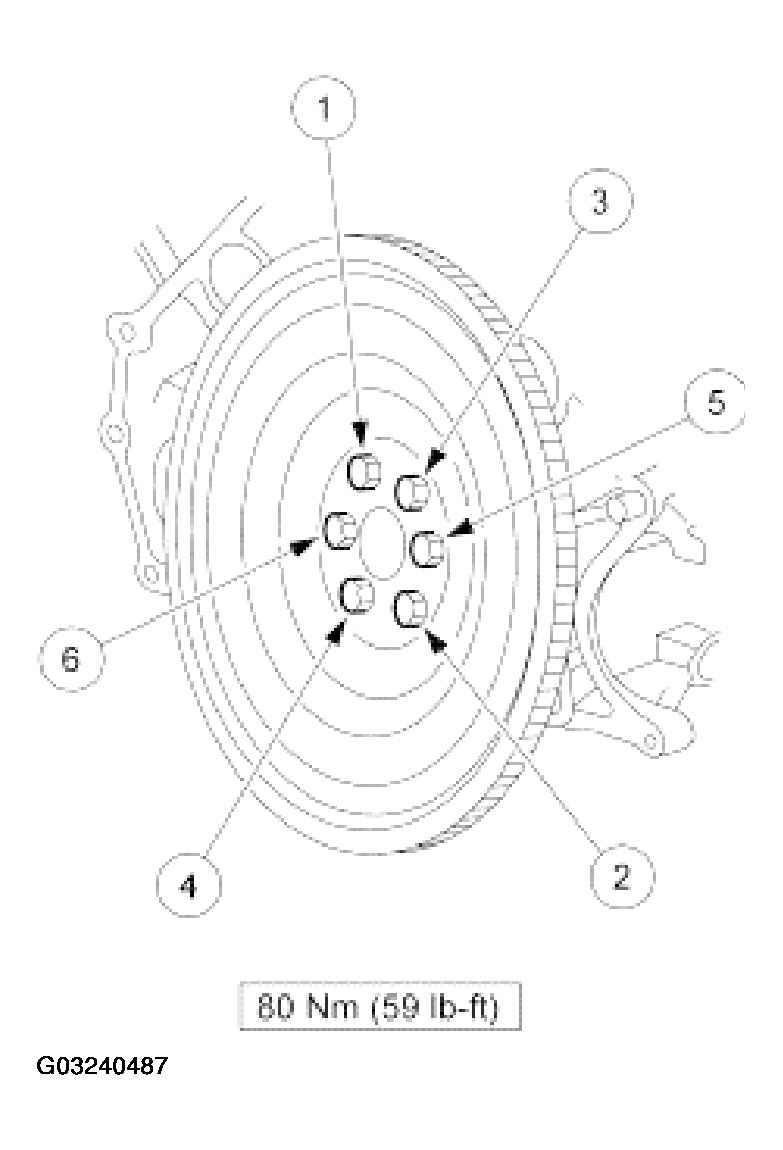

    Fig 1: Identifying Flexplate Bolts Removal Sequence
    G03240487Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
