Crankshaft Rear Oil Seal: Installation

    All Vehicles

  1. Using the special tools, install the crankshaft rear oil seal.
    • Lubricate the oil seal using clean engine oil.

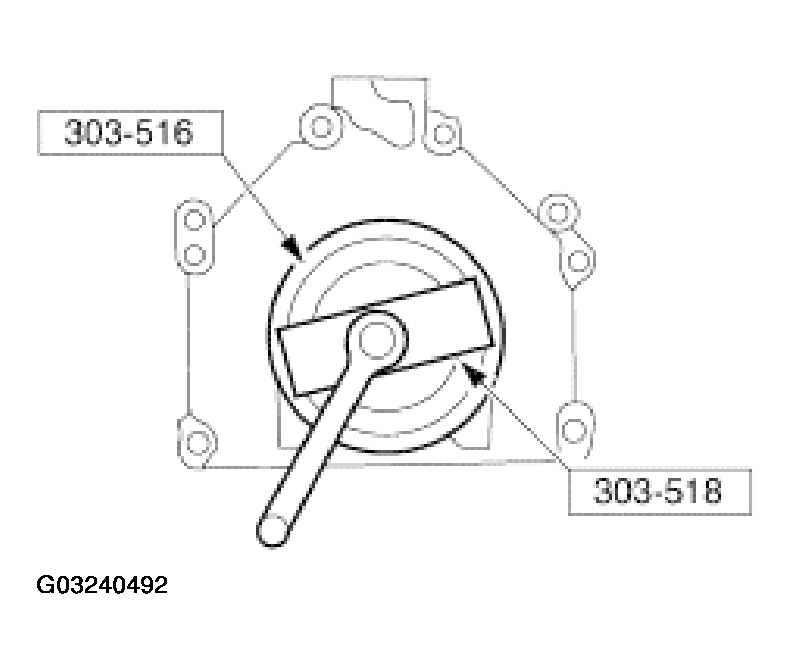

      Fig 1: Installing Crankshaft Oil Seal
      G03240492Courtesy of FORD MOTOR CO.
  2. Using the special tool, install the crankshaft oil slinger.

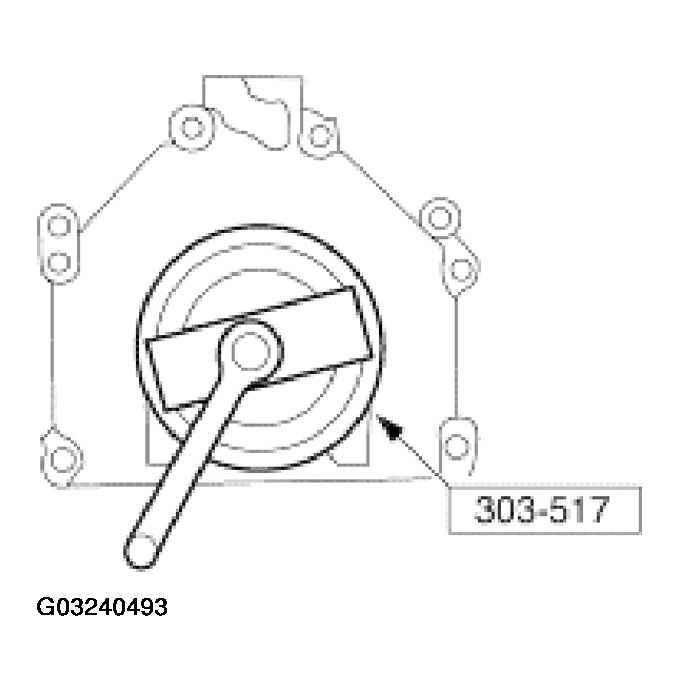

    Fig 2: Installing Crankshaft Oil Slinger
    G03240493Courtesy of FORD MOTOR CO.

    3. Manual Transmission Vehicles

  3. Install the flywheel. For additional information, refer to FLYWHEEL .

    4. Automatic Transmission Vehicles

  4. Install the flexplate. For additional information, refer to FLEXPLATE .
