Removal And Installation

Drain the engine coolant from the degas bottle only. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Disconnect the radiator vent hose.

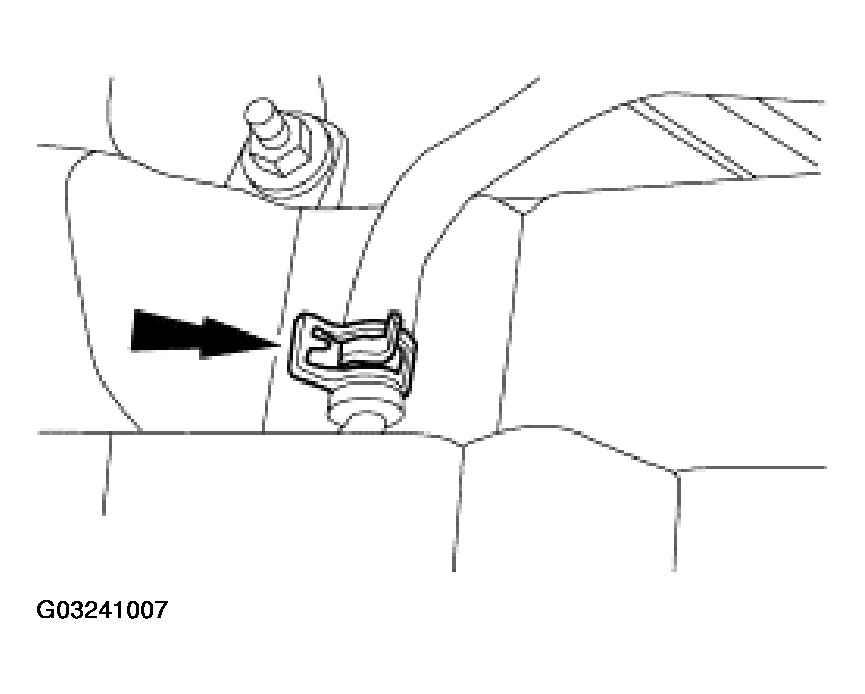

Fig 1: Disconnecting Radiator Vent Hose
Courtesy of FORD MOTOR CO.
Remove the degas bottle return hose.

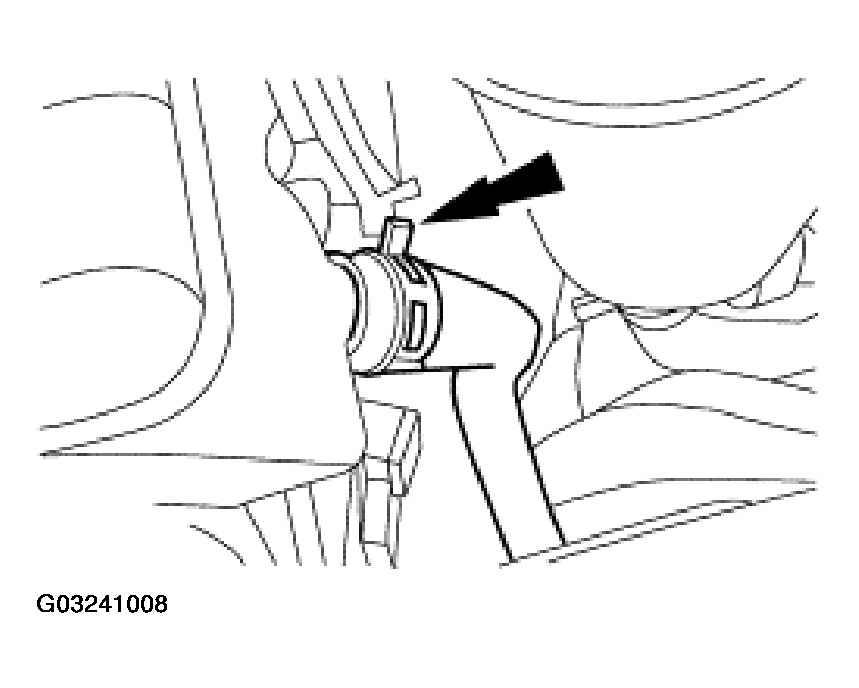

Fig 2: Removing Degas Bottle Return Hose
Courtesy of FORD MOTOR CO.
Remove the nuts and the degas bottle.

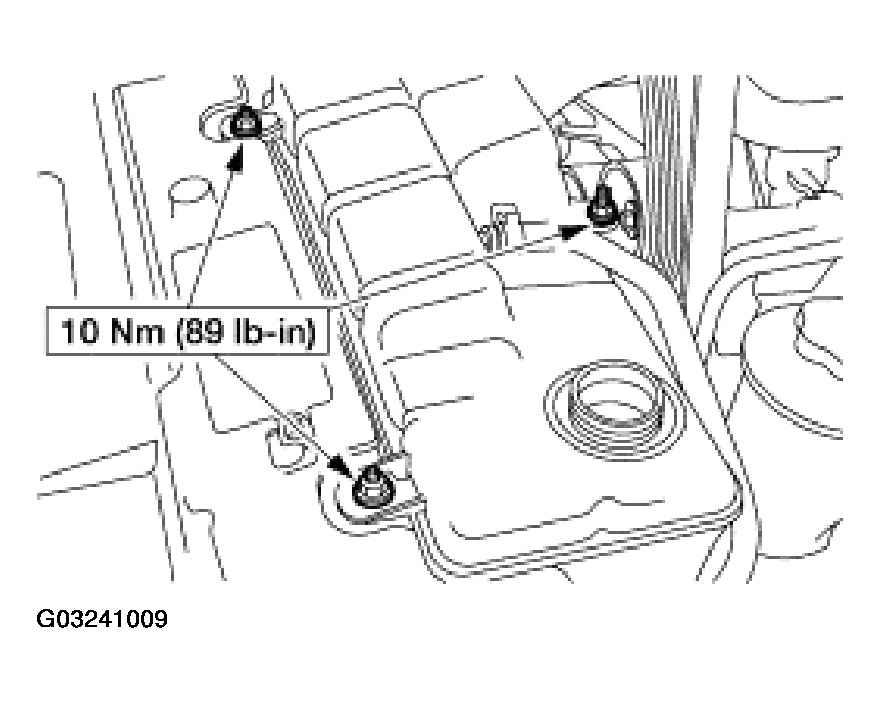

Fig 3: Removing Nuts And Degas Bottle
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Fill and bleed the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
