Convertible Top Appears Low At The Center Of The Door Window Glass - B-Hinge Adjustment

NOTE: Before starting the adjustment process, inspect the top for damage, make sure that the door window glass and rear quarter glass are correctly adjusted then completely lower all window glass.

NOTE: After each adjustment make sure the convertible top operates correctly.

NOTE: If the B-hinge set screw is adjusted to raise or lower the B-hinge, inspect the header height, top pull down and dowel and receiver clearance. Adjust the cam bolt and balance link as necessary.

Loosen the lock nut and adjust the B-hinge screw.

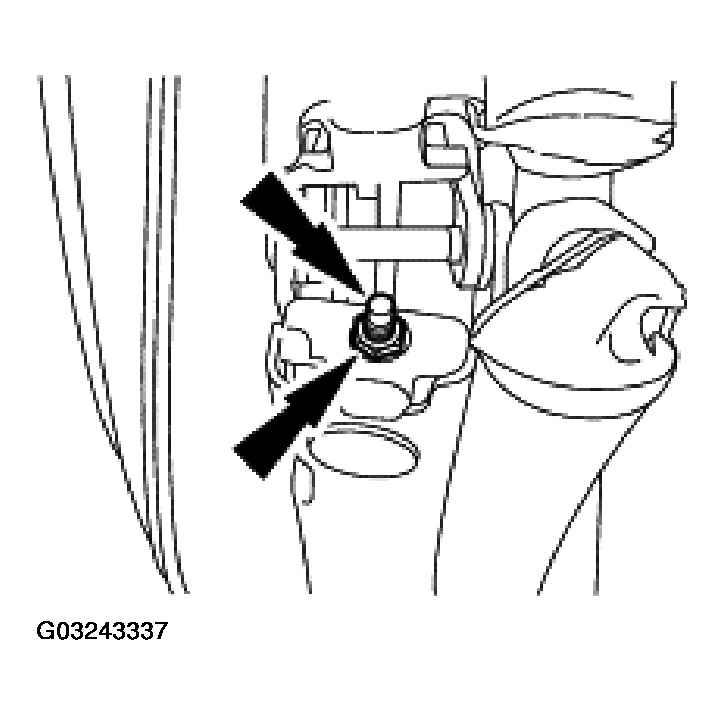

Fig 1: Loosening Lock Nut And Adjusting B-Hinge Screw
Courtesy of FORD MOTOR CO.
Tighten the lock nut.
- Threadlock and sealer on the lock nut.
Make sure the convertible top operate correctly.
Close the convertible top.
