Pinpoint Test E: Antenna Not Connected Defective Transceiver
Pinpoint Test E: Antenna Not Connected Defective Transceiver

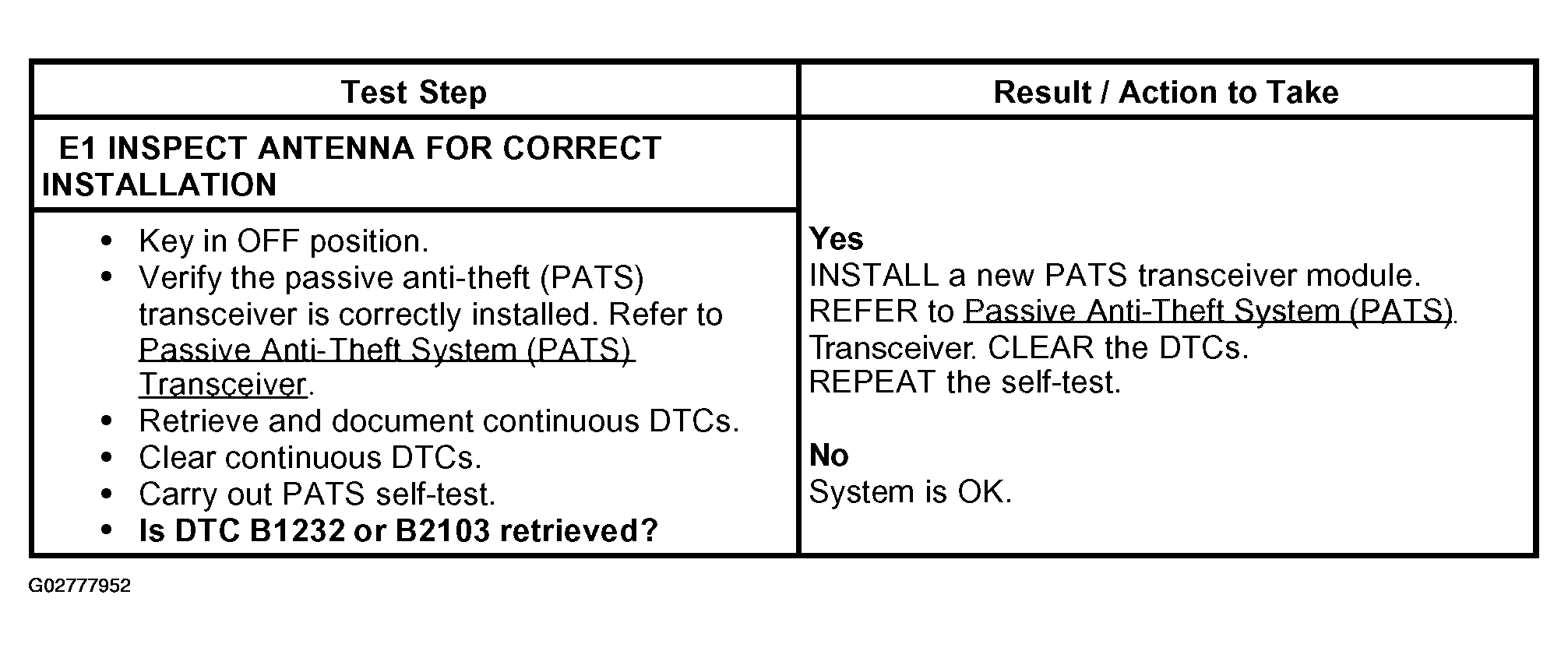

Fig 1: Pinpoint Test E Antenna Not Connected Defective Transceiver
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
