Clutch Pressure Plate Locating Dowels: Removal
WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- When installed in an open hole, use a drift to remove the dowel. When installed in a blind hole, use locking pliers to remove the dowel.

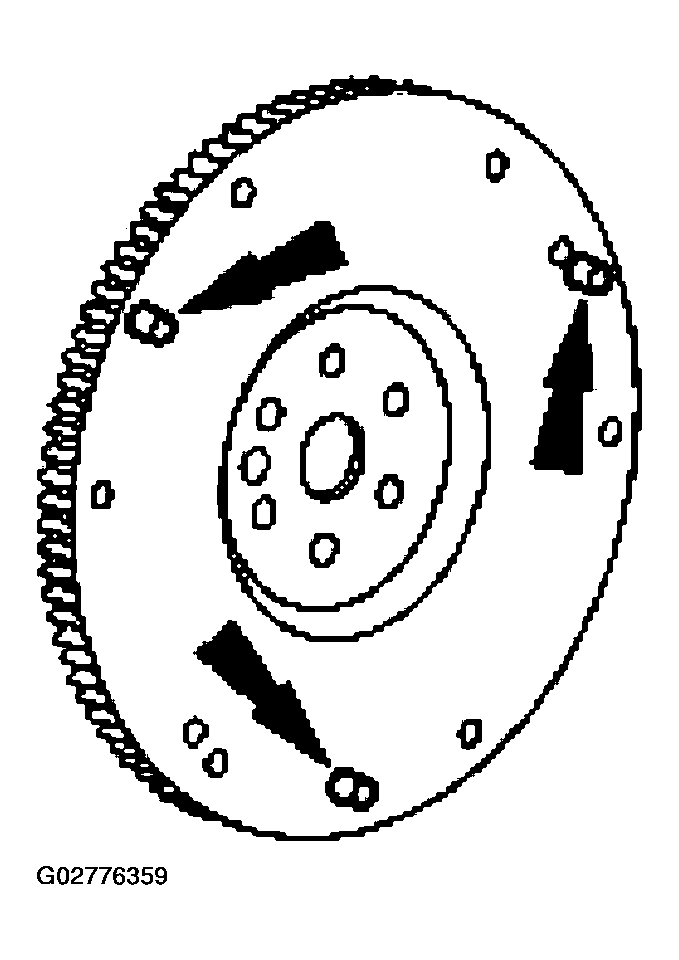

- There are two dowels on the diesel engine flywheel, and three dowels on the gasoline engine flywheel.
CAUTION:
Do not damage the bore or the surrounding surface area.
