Pinpoint Test X: Speed Control Indicator Is Never/Always On (1 Of 2)

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

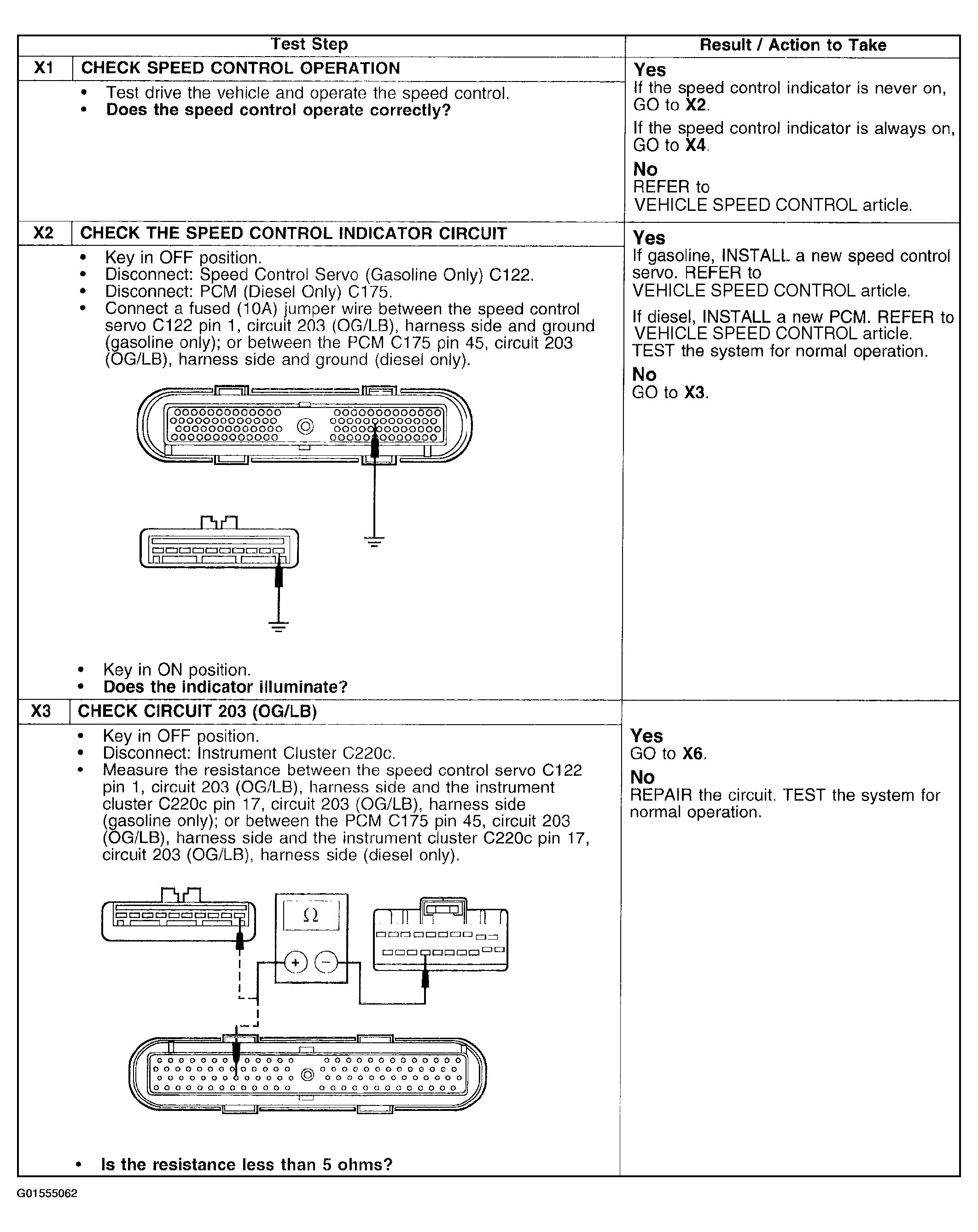

Fig 1: Pinpoint Test X: Speed Control Indicator Is Never/Always On (X1-X3)

Courtesy of FORD MOTOR CO.

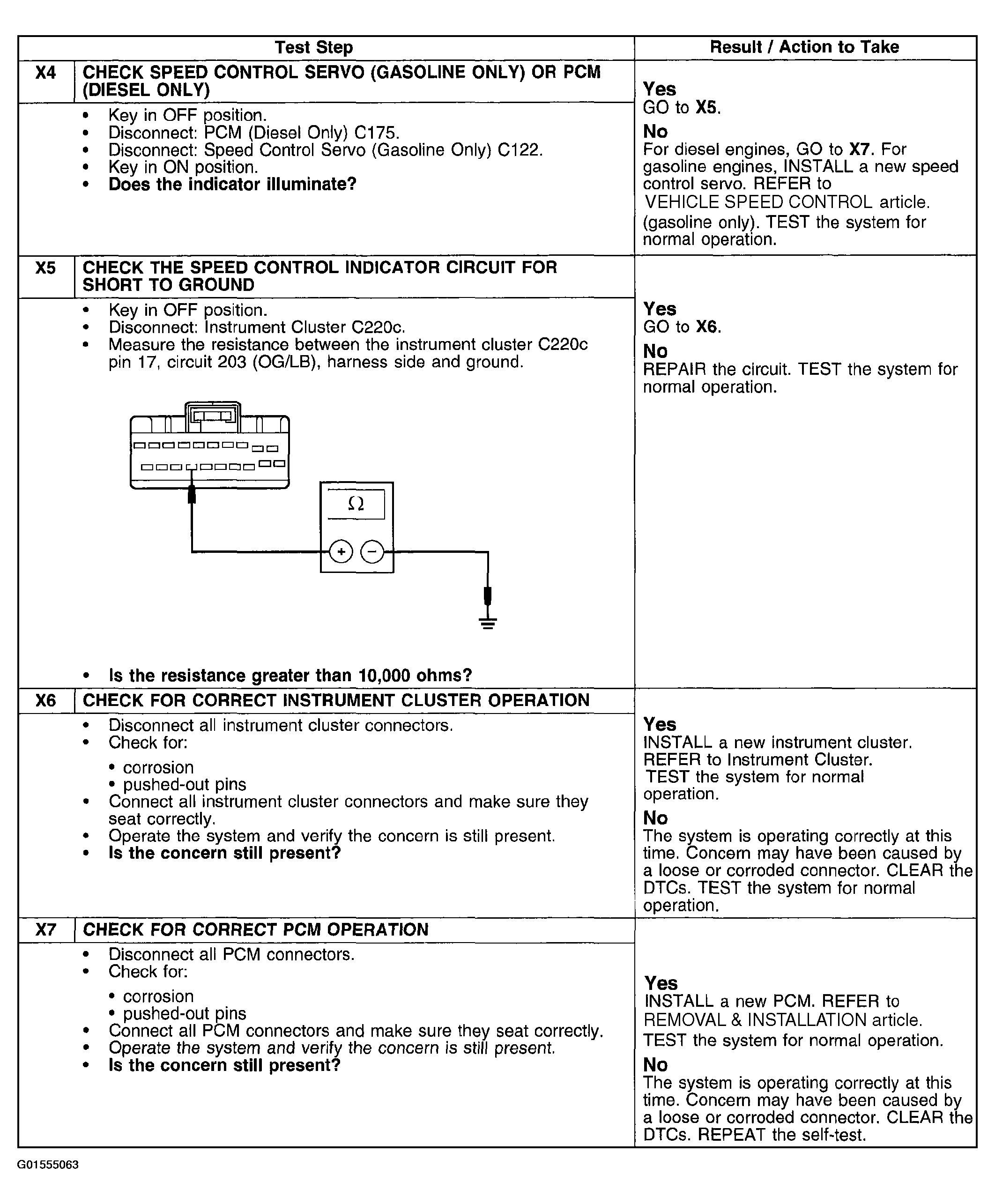

Fig 2: Pinpoint Test X: Speed Control Indicator Is Never/Always On (X4-X7)

Courtesy of FORD MOTOR CO.
