Pinpoint Test O: Charging System Indicator Is Never On

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

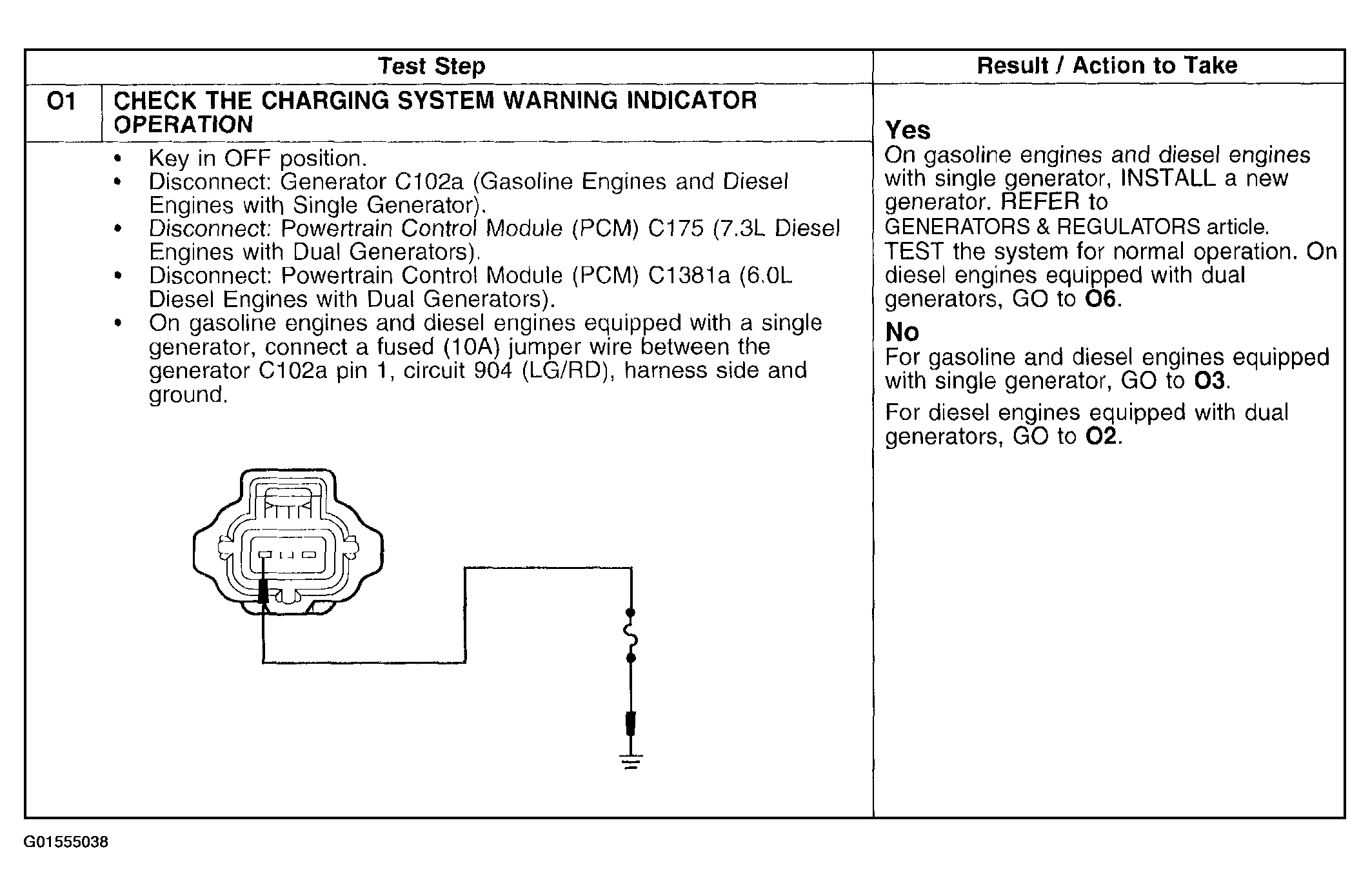

Fig 1: Pinpoint Test O: Charging System Indicator Is Never On (O1)

Courtesy of FORD MOTOR CO.

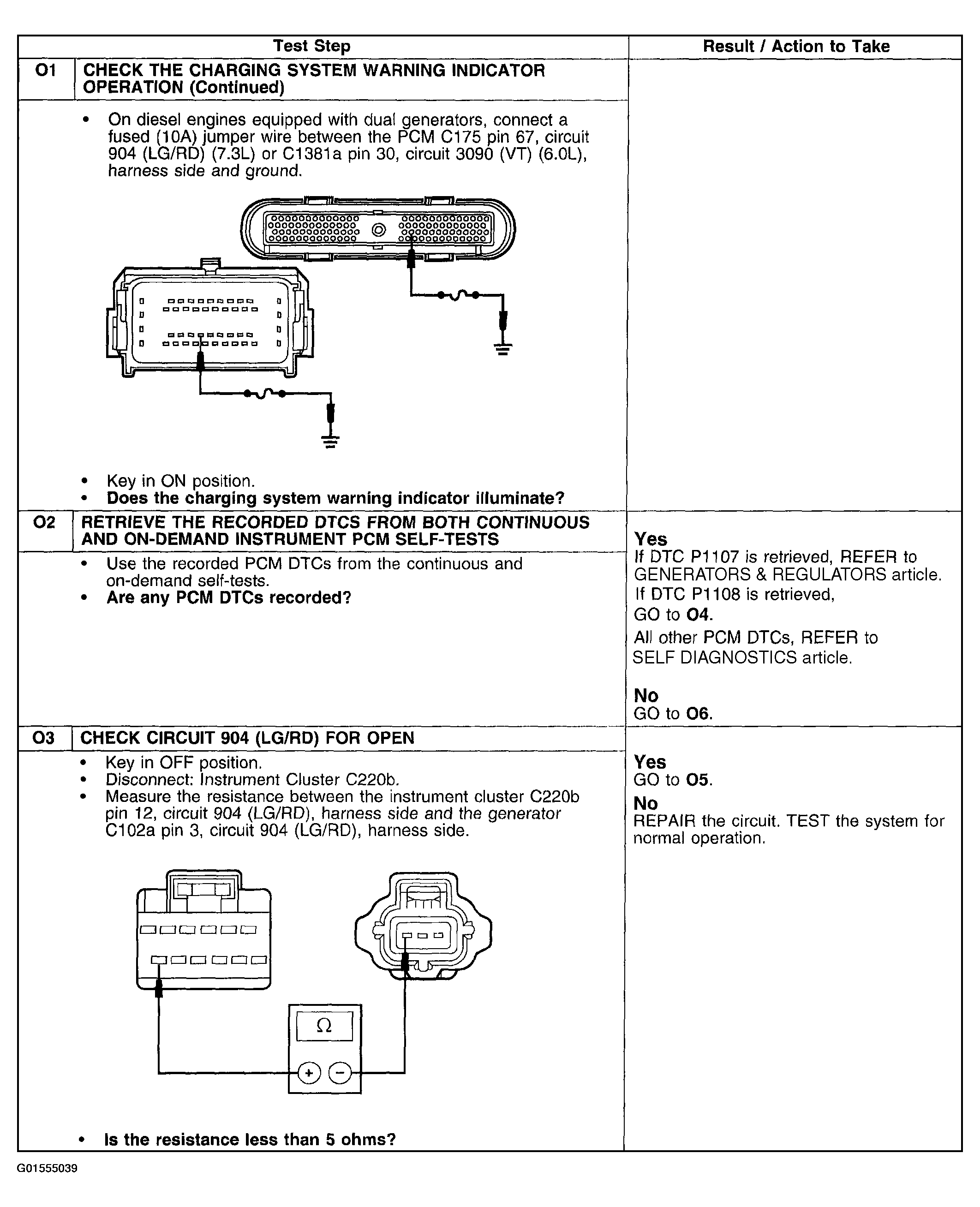

Fig 2: Pinpoint Test O: Charging System Indicator Is Never On (O1 Cont.-O3)

Courtesy of FORD MOTOR CO.

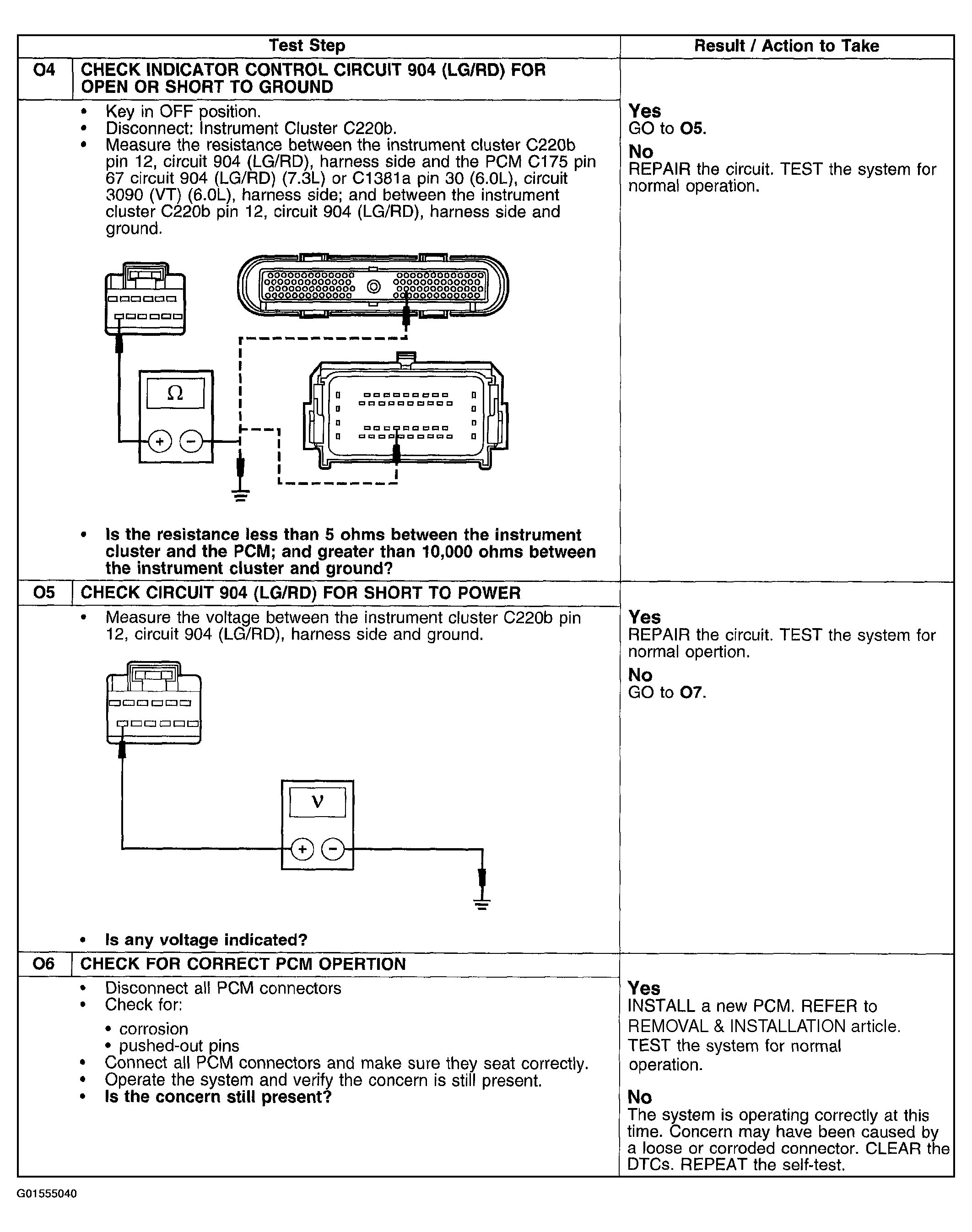

Fig 3: Pinpoint Test O: Charging System Indicator Is Never On (O4-O6)

Courtesy of FORD MOTOR CO.

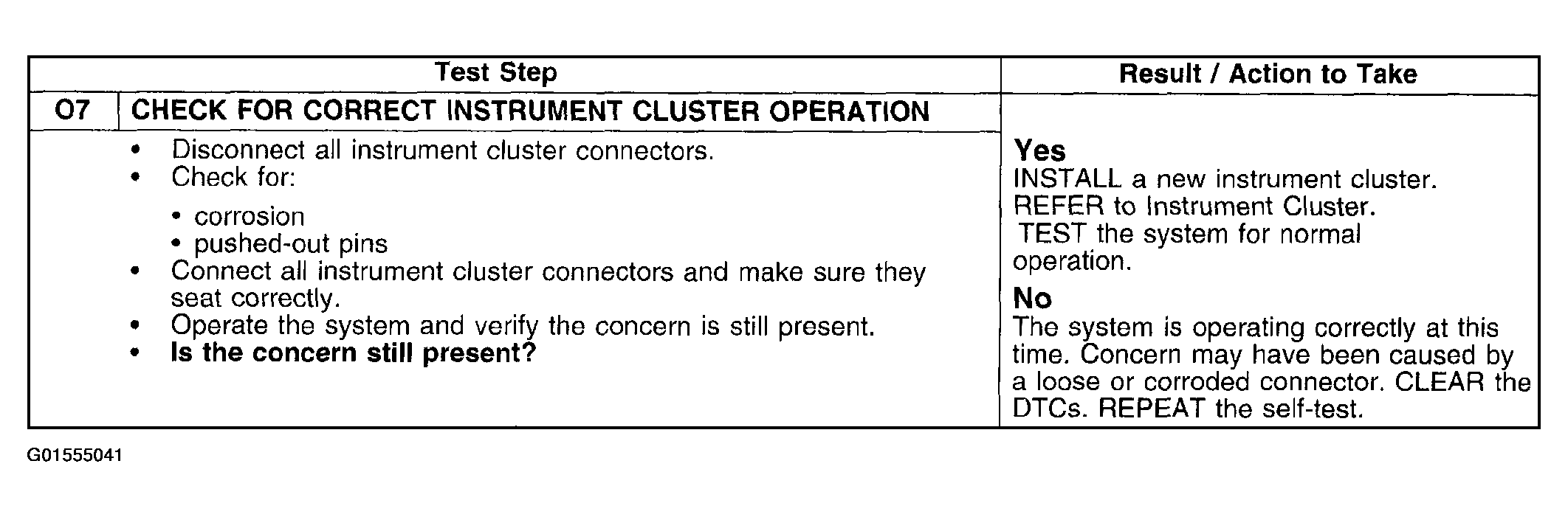

Fig 4: Pinpoint Test O: Charging System Indicator Is Never On (O7)

Courtesy of FORD MOTOR CO.

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
