Pinpoint Test L: Abs Warning Indicator Is Never/Always On

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

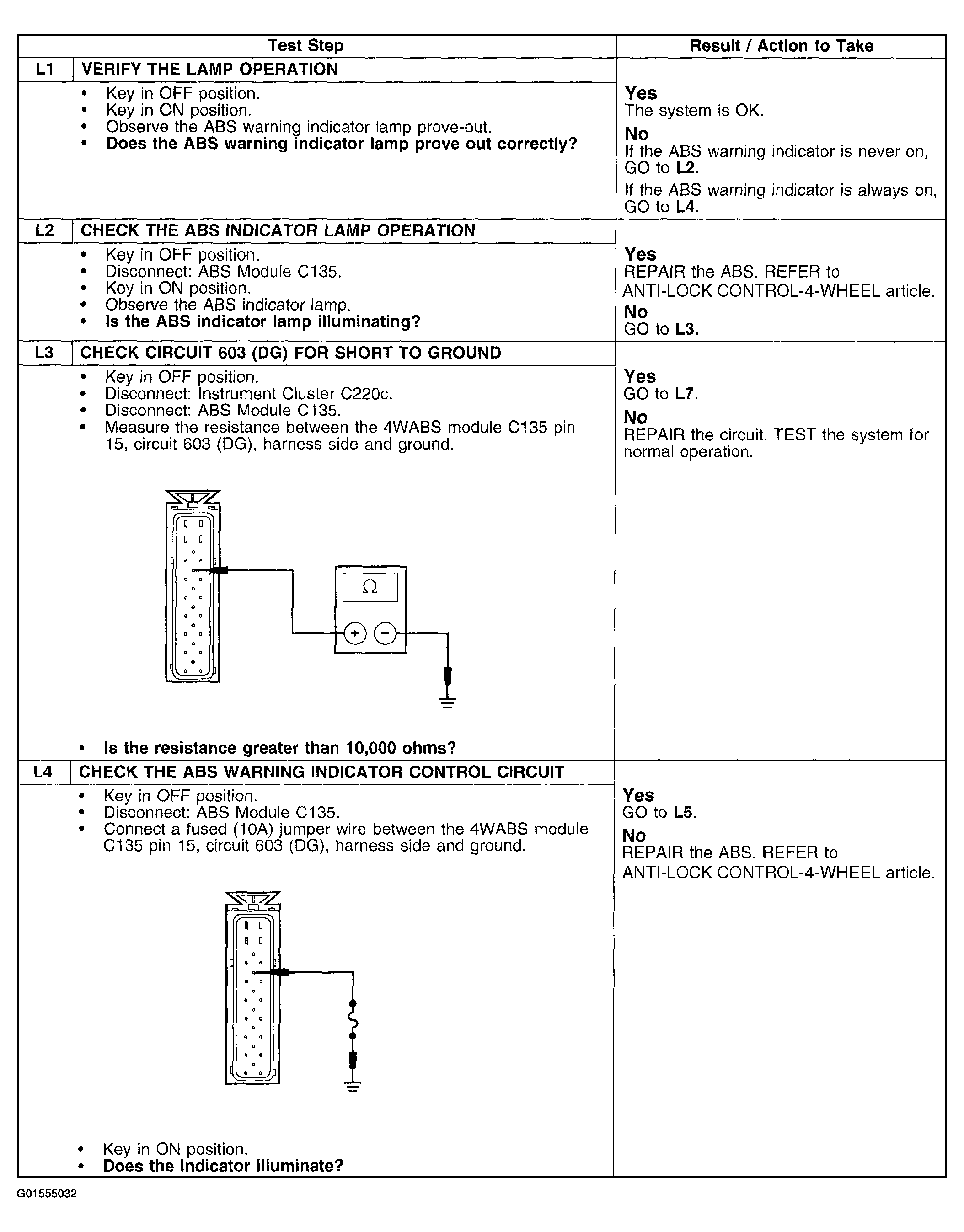

Fig 1: Pinpoint Test L: ABS Warning Indicator Is Never/Always On (L1-L4)

Courtesy of FORD MOTOR CO.

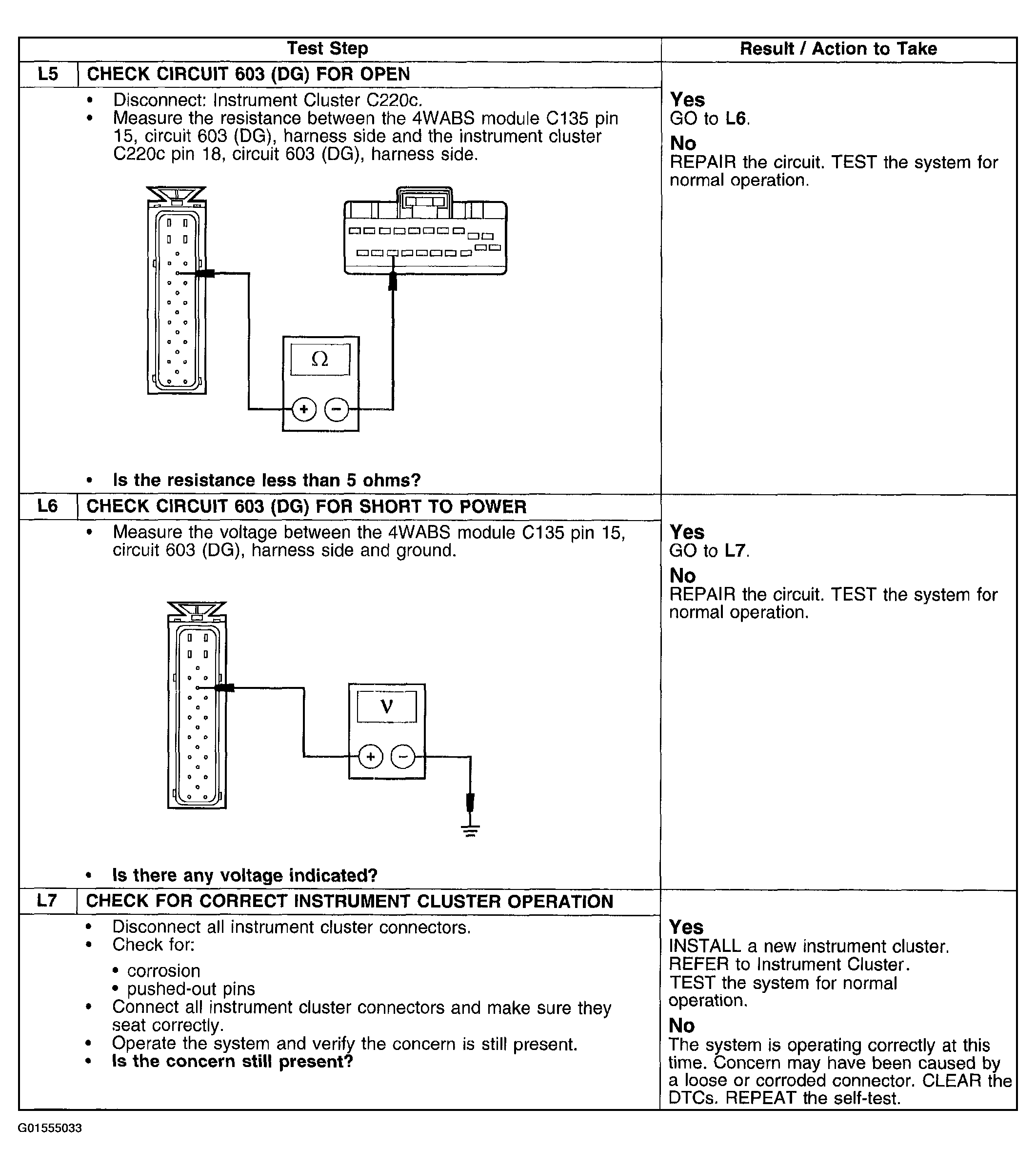

Fig 2: Pinpoint Test L: ABS Warning Indicator Is Never/Always On (L5-L7)

Courtesy of FORD MOTOR CO.
