Pinpoint Test H: Speedometer Is Inoperative

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

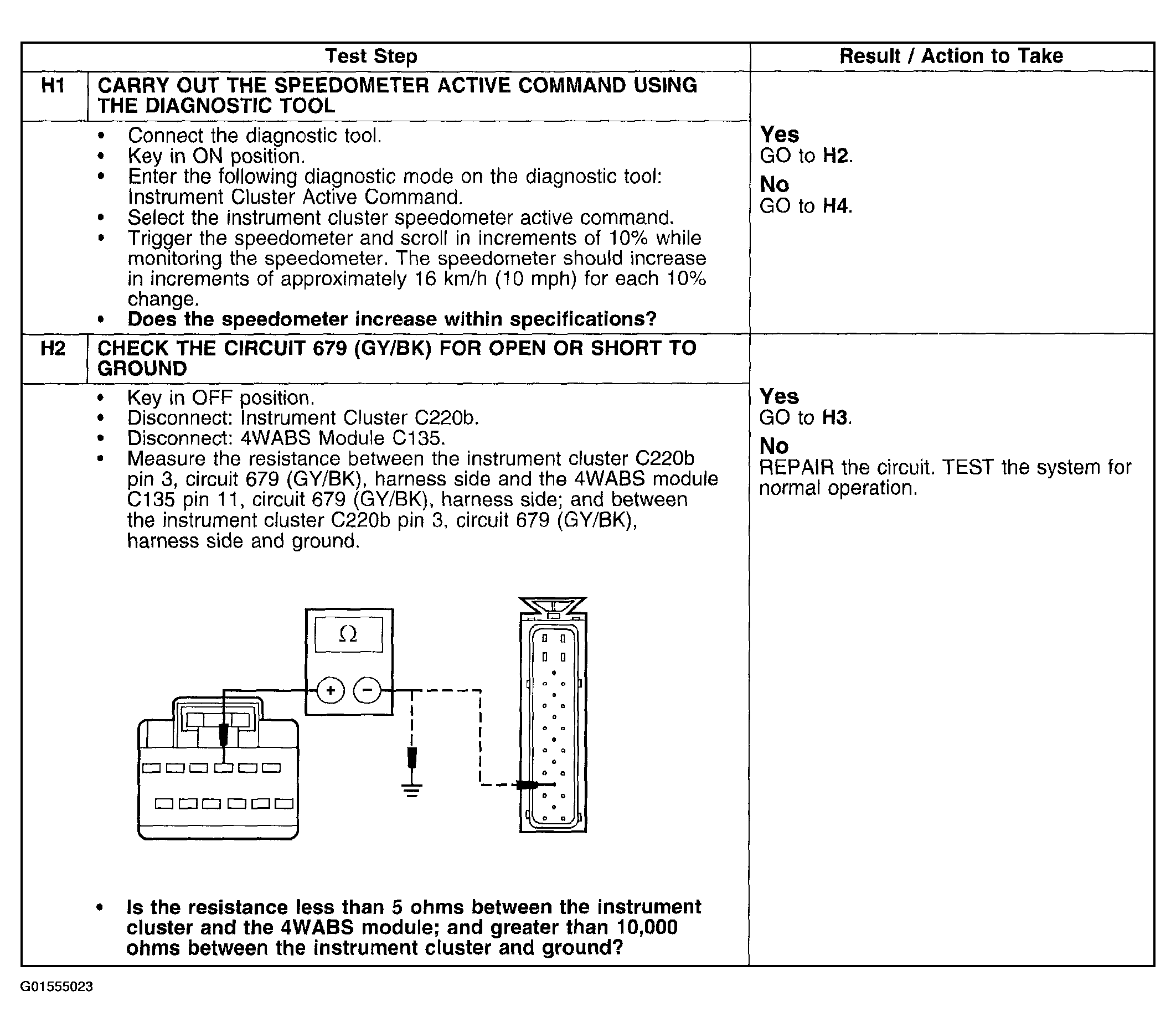

Fig 1: Pinpoint Test H: Speedometer Is Inoperative (H1 & H2)
G01555023Courtesy of FORD MOTOR CO.

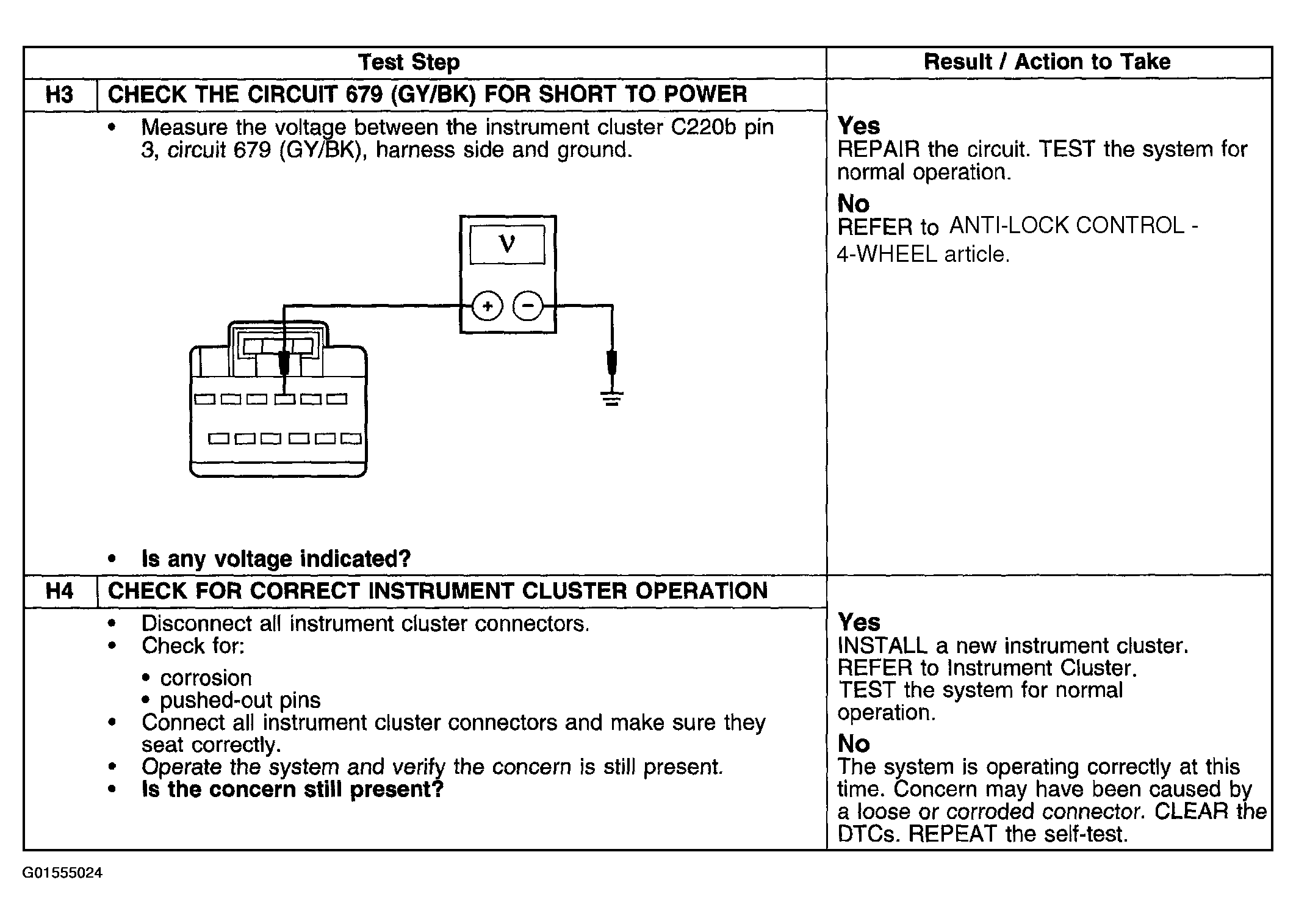

Fig 2: Pinpoint Test H: Speedometer Is Inoperative (H3 & H4)
G01555024Courtesy of FORD MOTOR CO.
