Home >> Ford >> 2003 >> Excursion 7.3 F, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Cluster System - Excursion & F250-F550 Super Duty >> Diagnosis And Testing >> Instrument Cluster >> Pinpoint Tests >> Pinpoint Test AA: Check Gage Warning Indicator Is Inoperative/Always On

Pinpoint Test AA: Check Gage Warning Indicator Is Inoperative/Always On

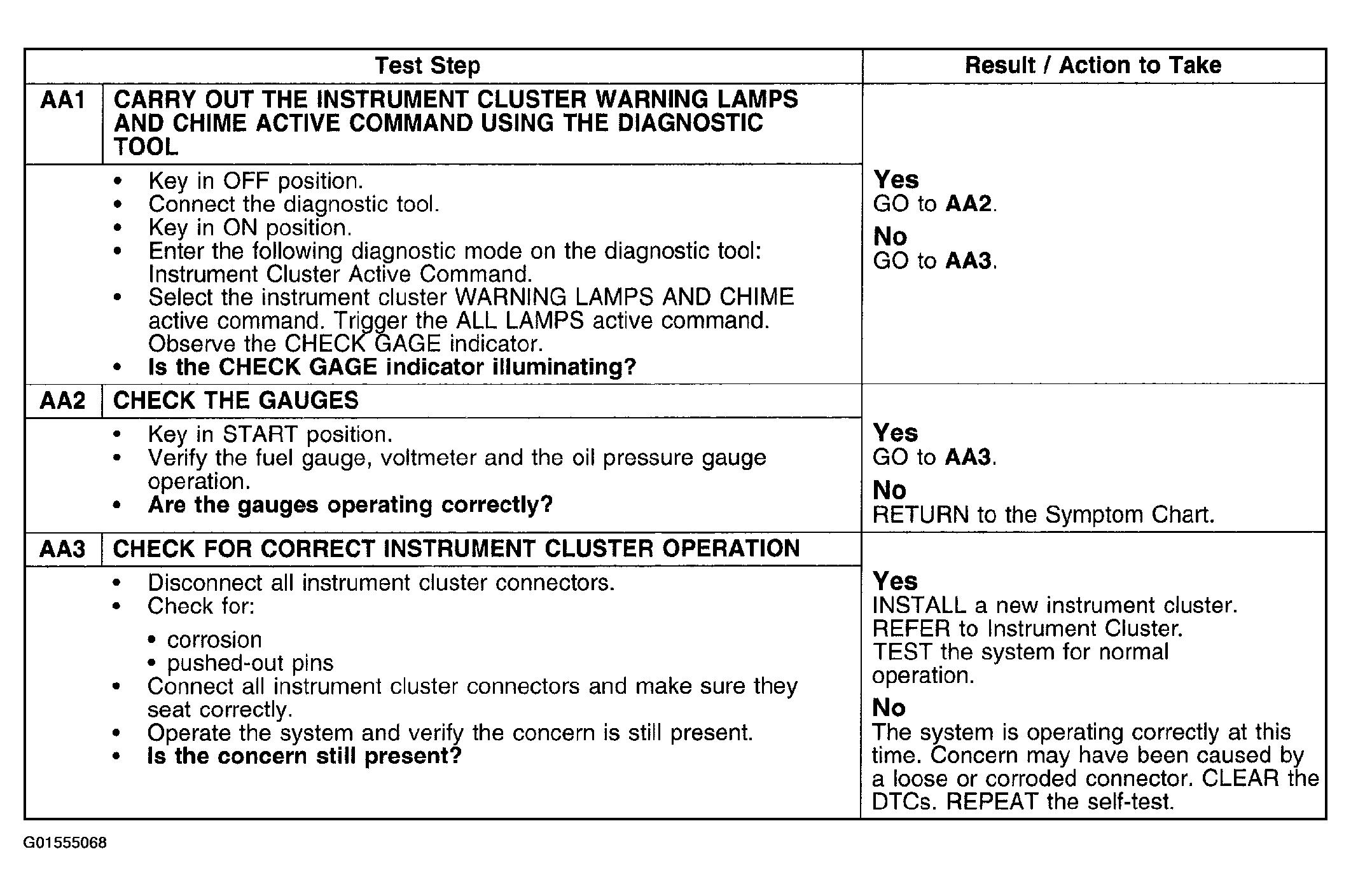

Fig 1: Pinpoint Test AA: Check Gage Warning Indicator Is Inoperative/Always On (AA1-AA3)

G01555068

Courtesy of FORD MOTOR CO.
