Turbine Shaft Speed (TSS) Sensor: Installation

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Install the TSS sensor and install the bolt.
- Tighten to 11 Nm (97 lb-in).

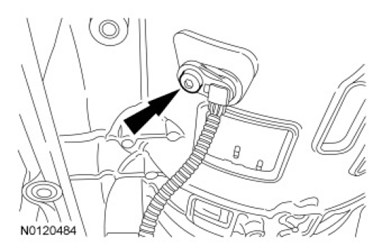

Fig 1: Locating Turbine Shaft Speed (TSS) Sensor Bolt
Courtesy of FORD MOTOR CO.
Connect the TSS sensor electrical connector.

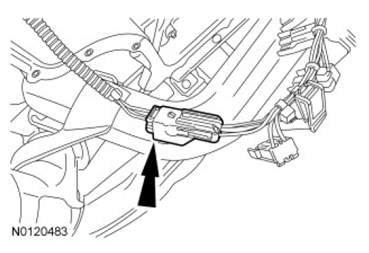

Fig 2: Locating Turbine Shaft Speed (TSS) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the main control. For additional information, refer to MAIN CONTROL .
