Transmission Range (TR) Sensor: Removal

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the selector lever cable end from the manual control lever.

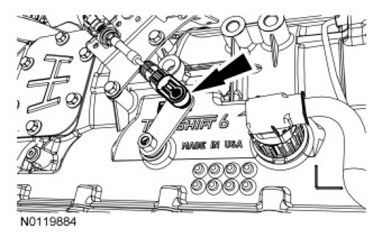

    Fig 1: Locating Selector Lever Cable
    G07482862Courtesy of FORD MOTOR CO.
  2. Move the manual control lever counterclockwise to the LOW position.

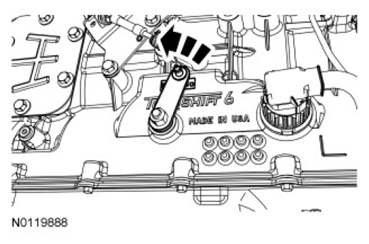

    Fig 2: Moving Manual Control Lever Counterclockwise
    G07482863Courtesy of FORD MOTOR CO.
  3. Remove the transmission fluid pan. For additional information, refer to TRANSMISSION FLUID PAN .
  4. Disconnect the Transmission Fluid Temperature (TFT) sensor electrical connector and the Transmission Range (TR) sensor electrical connector and position the transmission wiring harness retainer aside.

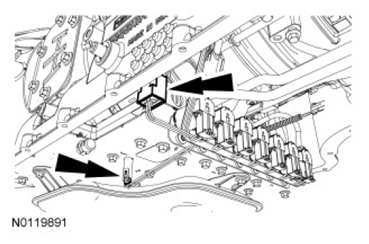

    Fig 3: Locating Transmission Fluid Temperature Sensor And Transmission Range Sensor Electrical Connectors
    G07482864Courtesy of FORD MOTOR CO.
    5. NOTE: Do not bend the manual valve rod clip when removing the manual valve rod. If the manual valve rod clip is bent back to remove the manual valve rod instead of sliding it off, the manual valve rod clip will become permanently distorted causing total loss of transmission control or transmission failure. If the manual valve rod clip is bent, install a new manual valve rod clip.

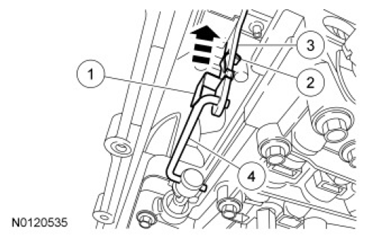

    Fig 4: Locating Manual Valve Rod
    G07482865Courtesy of FORD MOTOR CO.
  5. Remove the manual valve rod. Pull the manual valve rod clip tab out of the TR  sensor, slide the manual valve rod clip off of the manual valve rod and remove the manual valve rod from the TR  sensor and the manual valve.
    1. Manual valve rod clip
    2. Manual valve rod clip tab
    3. TR  sensor
    4. Manual valve rod
  6. Using a punch, remove and discard the manual shaft-to- TR  sensor roll pin.

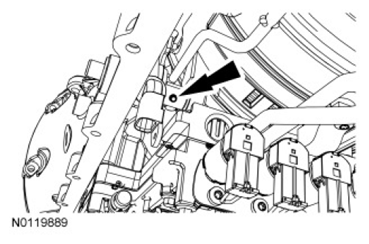

    Fig 5: Locating Manual Shaft-To-TR Sensor Roll Pin
    G07482866Courtesy of FORD MOTOR CO.
  7. Loosen the detent spring bolt and the detent spring enough to remove the tension from the TR  sensor.

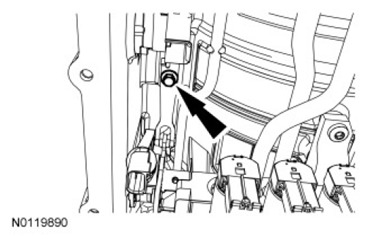

    Fig 6: Locating TR Sensor Detent Spring Bolt
    G07482867Courtesy of FORD MOTOR CO.
  8. Slide the manual shaft out of the TR  sensor and remove the TR  sensor.
    1. Manual shaft
    2. TR  sensor
    Fig 7: Sliding Manual Shaft
    G07482868Courtesy of FORD MOTOR CO.
  9. Rotate the TR  sensor and remove the park pawl actuator rod from the TR  sensor.
    Fig 8: Locating Park Pawl Actuator Rod
    G07482869Courtesy of FORD MOTOR CO.
