Transmission Fluid Temperature (TFT) Sensor: Installation

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the TFT  sensor in the main control valve body and rotate it 90 degrees clockwise to lock it in place.
    1. Install the TFT  sensor in the main control valve body.
    2. Rotate the TFT  sensor 90 degrees clockwise to lock the lock tab in place.
    Fig 1: Rotating TFT Sensor Clockwise
    G07482859Courtesy of FORD MOTOR CO.
  2. Connect the Transmission Fluid Temperature (TFT) sensor electrical connector.

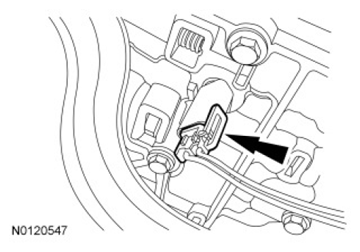

    Fig 2: Locating Transmission Fluid Temperature Sensor Electrical Connector
    G07482860Courtesy of FORD MOTOR CO.
  3. Install the transmission fluid pan. For additional information, refer to TRANSMISSION FLUID PAN .
