Transmission Fluid Pan: Removal

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the transmission fluid pan drain plug and allow the transmission fluid to drain.

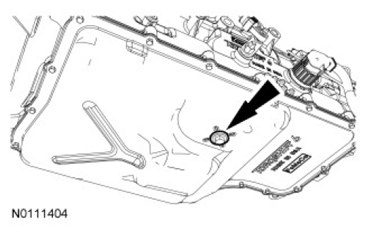

    Fig 1: Locating Transmission Fluid Pan Drain Plug
    G07482792Courtesy of FORD MOTOR CO.
  3. Install the transmission fluid pan drain plug.
    • Tighten to 18 Nm (159 lb-in).
    Fig 2: Locating Transmission Fluid Pan Drain Plug
    G07482793Courtesy of FORD MOTOR CO.
    4. NOTE: The transmission fluid pan gasket is a reusable gasket. Do not discard the transmission fluid pan gasket.

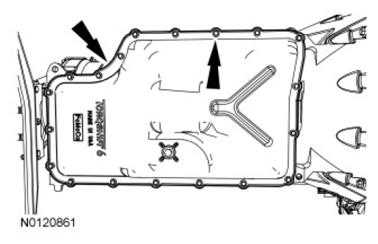

    Fig 3: Locating Transmission Fluid Pan Gasket And Bolts
    G07482794Courtesy of FORD MOTOR CO.
  4. Remove and 19 bolts and remove the transmission fluid pan and gasket.
