Transmission Filler Tube - Gasoline Engines: Removal

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the transmission fluid level indicator.
    Fig 1: Locating Transmission Fluid Level Indicator
    G07482900Courtesy of FORD MOTOR CO.
  3. Remove the upper transmission fluid filler tube bolt.
    Fig 2: Locating Upper Transmission Fluid Filler Tube Bolt
    G07482901Courtesy of FORD MOTOR CO.
  4. Remove the lower transmission fluid filler tube bolt, remove the transmission fluid filler tube and discard the O-ring seal.

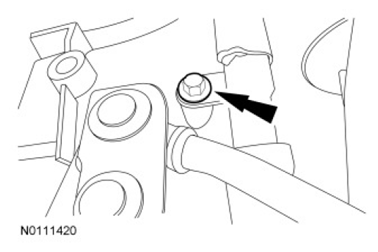

    Fig 3: Locating Upper Transmission Fluid Filler Tube Bolt
    G07482902Courtesy of FORD MOTOR CO.
