Transmission Control Module (TCM): Installation

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the TCM  in place and install 2 new nuts.
    • Tighten to 19 Nm (168 lb-in).

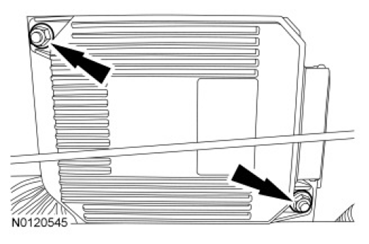

    Fig 1: Locating TCM Nuts
    G07482892Courtesy of FORD MOTOR CO.
    2. NOTE: Keep the Transmission Control Module (TCM) electrical connector straight when connecting it or damage the connector terminals can occur.
    Fig 2: Locating TCM Electrical Connector
    G07482893Courtesy of FORD MOTOR CO.
  2. Connect the TCM  electrical connector and slide the lock tab in to lock the connector.
  3. Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to MODULE COMMUNICATIONS NETWORK - MODULE CONFIGURATION .
  4. Using the scan tool, download the solenoid body strategy. For additional iformation, refer to SOLENOID BODY STRATEGY .
