Torque Converter Hub Seal: Installation

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

If reusing the original torque converter, use an emery cloth to clean the torque converter hub seal material off of the torque converter hub.

Fig 1: Locating Torque Converter Hub Seal
Courtesy of FORD MOTOR CO.
Using the Torque Converter Fluid Seal Remover and the Slide Hammer, remove and discard the torque converter hub seal.

Fig 2: Removing Torque Converter Hub Seal Using Torque Converter Fluid Seal Remover
Courtesy of FORD MOTOR CO.

NOTE: Pump shown removed for clarity.

Fig 3: Installing Torque Converter Hub Seal Using Front Pump Seal Installer

Courtesy of FORD MOTOR CO.

Using the Front Pump Seal Installer, install a new torque converter hub seal.
Install the Pump Remover/Installer Bracket on the torque converter with the pin in the bottom hole.

Fig 4: Identifying Pump Remover/Installer Bracket On Torque Converter
Courtesy of FORD MOTOR CO.

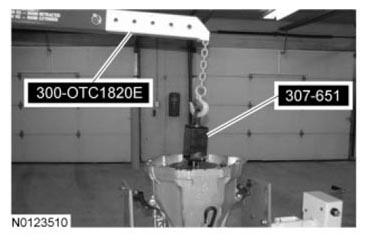

Using the Heavy Duty Floor Crane and the Pump Remover/Installer Bracket, install the torque converter.

Fig 5: Installing Torque Converter Using Heavy Duty Floor Crane
Courtesy of FORD MOTOR CO.

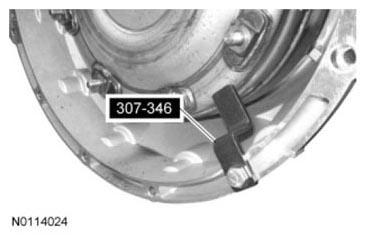

Install the Torque Converter Retainer.

Fig 6: Installing Torque Converter Retainer By Using Required Tools
Courtesy of FORD MOTOR CO.
Install the transmission. For additional information, refer to TRANSMISSION - GASOLINE ENGINES , or TRANSMISSION - DIESEL ENGINES .
