Shift Solenoids (SS): Installation

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Solenoids are calibrated from the factory and are not all the same. To replace a solenoid, match the replacement solenoid type (normally high/normally low) and the band number with the original solenoid or harsh shifts or damage to the transmission can occur.
    Fig 1: Identifying O-Rings And Solenoid Band Number
    G07482825Courtesy of FORD MOTOR CO.
  1. Use the solenoid exploded view at the beginning of this procedure to identify the type (normally high/normally low) of solenoid it is and use the charts below to get the correct part number for the solenoid band number. Lubricate the solenoid O-rings with clean transmission fluid.
    SOLENOID BAND NUMBER

    Solenoid Band Number Normally High Solenoid Part Number
    2 BC3Z-7G383-K
    3 BC3Z-7G383-L
    4 BC3Z-7G383-M
    5 BC3Z-7G383-N
    SOLENOID BAND NUMBER

    Solenoid Band Number Normally Low Solenoid Part Number
    2 BC3Z-7G383-S
    3 BC3Z-7G383-T
    4 BC3Z-7G383-U
    5 BC3Z-7G383-V
    1. O-rings
    2. Solenoid band number
  2. Position the solenoid(s) in the main control valve body in the correct port(s) as marked during removal.
    Fig 2: Identifying Solenoids Of Main Control Valve Body
    G07482826Courtesy of FORD MOTOR CO.
  3. NOTE: Be sure the solenoid retainer is installed so the bolt hole surface rests flush against the main control valve body assembly or damage to the solenoids or retainer can occur.

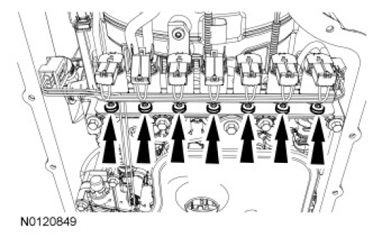

    Fig 3: Locating Solenoid Retainer Bolts
    G07482827Courtesy of FORD MOTOR CO.
  4. Install the solenoid retainer and the 7 bolts.
    • Tighten to 11 Nm (97 lb-in).
  5. Position the wiring harness in place and connect the solenoid electrical connector(s).

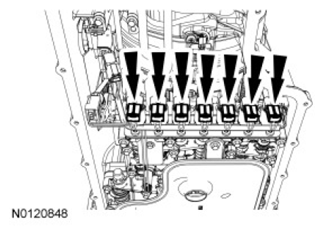

    Fig 4: Locating Solenoid Electrical Connectors
    G07482828Courtesy of FORD MOTOR CO.
  6. Install the transmission fluid pan. For additional information, refer to TRANSMISSION FLUID PAN .
