Output Shaft Speed (OSS) Sensor: Installation

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the OSS  sensor and install the bolt.
    • Tighten to 11 Nm (97 lb-in).

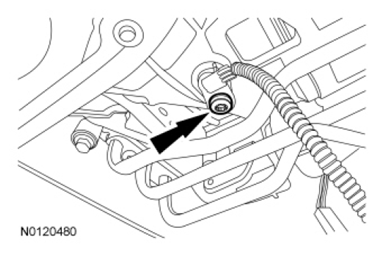

    Fig 1: Locating Output Shaft Speed (OSS) Sensor Bolt
    G07482881Courtesy of FORD MOTOR CO.
  2. Connect the OSS  sensor electrical connector.

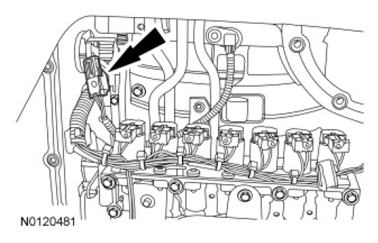

    Fig 2: Locating Output Shaft Speed (OSS) Sensor Electrical Connector
    G07482882Courtesy of FORD MOTOR CO.
  3. Install the transmission fluid pan. For additional information, refer to TRANSMISSION FLUID PAN .
