Manual Control Lever Shaft Seal: Removal

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the selector lever cable end from the manual control lever.

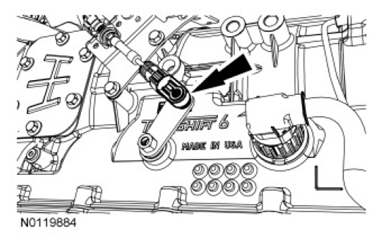

    Fig 1: Locating Selector Lever Cable
    G07482831Courtesy of FORD MOTOR CO.
  3. Remove the nut and remove the manual control lever.
    Fig 2: Locating Manual Control Lever Nut
    G07482832Courtesy of FORD MOTOR CO.
  4. Using a suitable tool, remove the manual shaft seal.
    Fig 3: Removing Manual Shaft Seal Using Suitable Tool
    G07482833Courtesy of FORD MOTOR CO.
