Internal Harness Service: Installation

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the wiring harness bulkhead O-ring with clean transmission fluid and install the wiring harness bulkhead in the transmission case. Make sure the 2 tabs lock the bulkhead in the transmission case.
    Fig 1: Locating Wiring Harness Bulkhead O-Ring
    G07482802Courtesy of FORD MOTOR CO.
  2. Connect the 7 solenoid electrical connectors, 2 speed sensor electrical connectors, TFT  sensor electrical connector and the TR  sensor electrical connector.

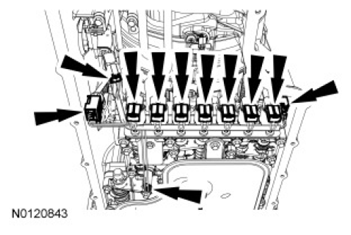

    Fig 2: Locating Solenoid, Speed Sensor, Transmission Fluid Temperature Sensor Electrical Connector And TR Sensor Electrical Connectors
    G07482803Courtesy of FORD MOTOR CO.
  3. Connect the selector lever cable end.

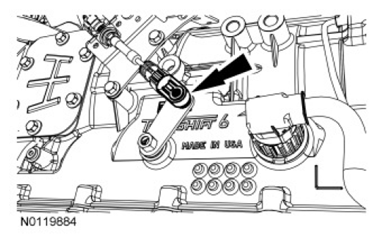

    Fig 3: Locating Selector Lever Cable
    G07482804Courtesy of FORD MOTOR CO.
  4. Install the transmission vehicle harness connector and lock the transmission vehicle harness connector by rotating the outer shell clockwise.

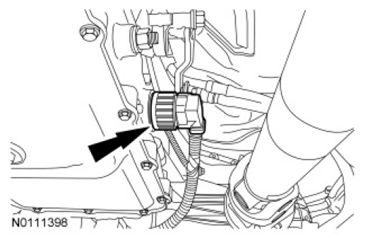

    Fig 4: Locating Transmission Vehicle Harness Connector
    G07482805Courtesy of FORD MOTOR CO.
  5. Install the transmission fluid pan. For additional information, refer to TRANSMISSION FLUID PAN .
