Upper Valve Body
WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

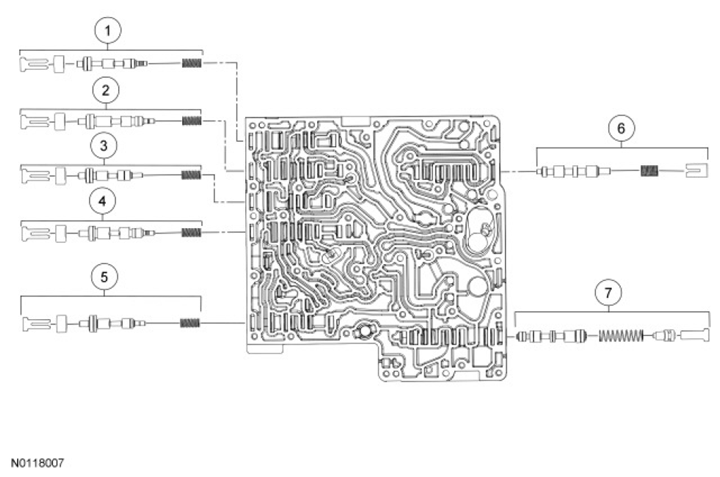

UPPER VALVE BODY PARTS DESCRIPTION CHART
| Item | Description |
|---|---|
| 1 | Overdrive (4,5,6) clutch regulator valve |
| 2 | Intermediate (2,6) clutch regulator valve |
| 3 | Forward (1,2,3,4) clutch regulator valve |
| 4 | Direct (3,5,R) clutch regulator valve |
| 5 | Low/reverse clutch regulator valve |
| 6 | Torque Converter Clutch (TCC) charge control valve |
| 7 | TCC apply regulator valve |
