Main Control - Overhaul: Material: Solenoids
WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

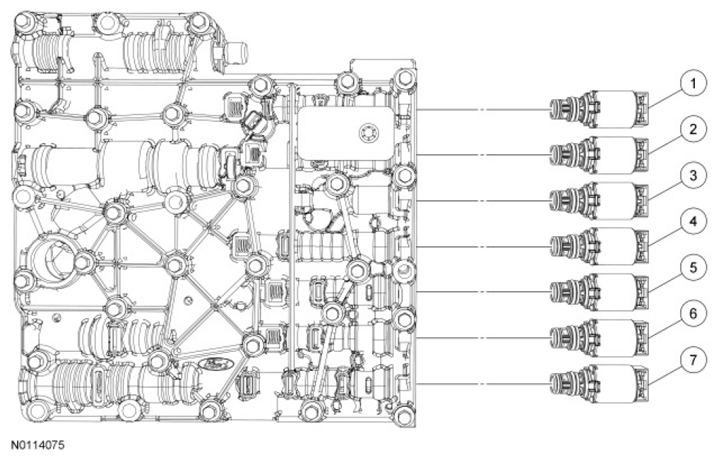

SOLENOIDS PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7G383 | Shift Solenoid D (SSD) Low/reverse (1,R) clutch, normally low |
| 2 | 7G383 | Line Pressure Control (LPC) solenoid, normally high |
| 3 | 7G383 | Torque Converter Clutch (TCC) solenoid, normally low |
| 4 | 7G383 | Shift Solenoid B (SSB) Direct (3,5,R) clutch, normally high |
| 5 | 7G383 | Shift Solenoid A (SSA) Forward (1,2,3,4) clutch, normally low |
| 6 | 7G383 | Shift Solenoid C (SSC), Intermediate (2,6) clutch, normally low |
| 7 | 7G383 | Shift Solenoid E (SSE), Overdrive (4,5,6) clutch, normally high |
