Lower Valve Body
WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

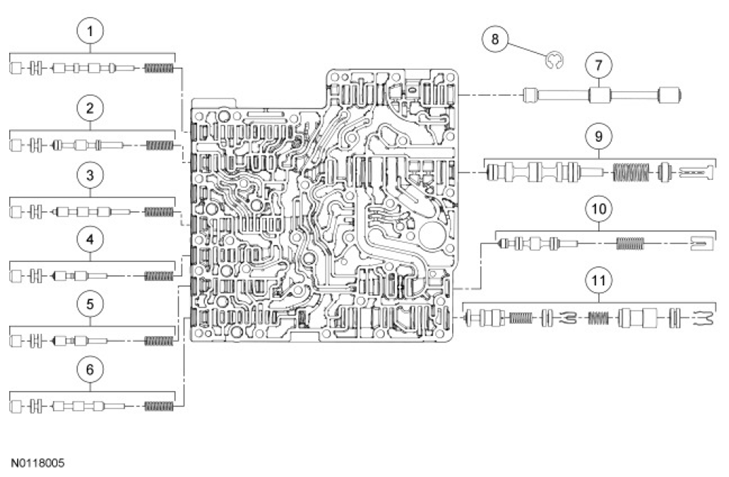

LOWER VALVE BODY PARTS DESCRIPTION CHART
| Item | Description |
|---|---|
| 1 | Low/reverse clutch latch valve |
| 2 | Solenoid feed pressure regulator valve |
| 3 | Direct (3,5,R) clutch latch valve |
| 4 | Forward (1,2,3,4) clutch latch valve |
| 5 | Intermediate (2,6) clutch latch valve |
| 6 | Overdrive (4,5,6) clutch latch valve |
| 7 | Manual valve |
| 8 | Manual valve retaining clip |
| 9 | Line Pressure Control (LPC) valve |
| 10 | TCC charge limit valve |
| 11 | Cooler bypass valve |
