Main Control - Overhaul: Disassembly

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift the tab on the Transmission Fluid Temperature (TFT) sensor, rotate it 90 degrees counterclockwise and remove it from the main control valve body.

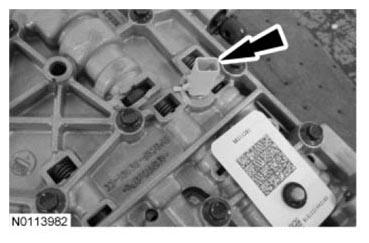

    Fig 1: Locating Transmission Fluid Temperature Sensor
    G07483355Courtesy of FORD MOTOR CO.
  2. Remove the E-clip on the manual control valve and remove the manual control valve from the main control valve body.

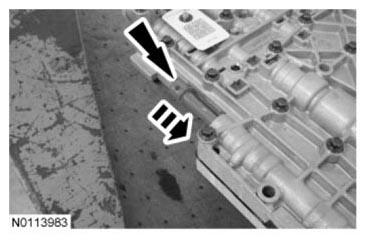

    Fig 2: Removing Manual Control Valve
    G07483356Courtesy of FORD MOTOR CO.
  3. Remove the 7 bolts and remove the solenoid retainer.

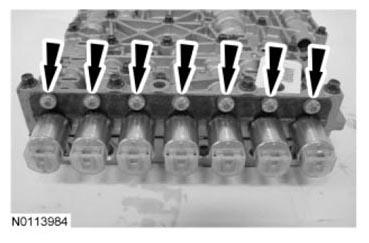

    Fig 3: Locating Solenoid Retainer Bolts
    G07483357Courtesy of FORD MOTOR CO.
    4. NOTE: Solenoids are calibrated from the factory and are not all the same. To replace a solenoid, match the replacement solenoid type (normally high/normally low) and the band number with the original solenoid or harsh/erratic shifts, harsh/soft engagement or damage to the transmission can occur.

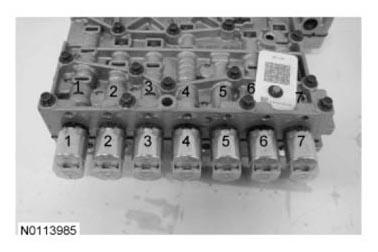

    Fig 4: Identifying Main Control Solenoids
    G07483358Courtesy of FORD MOTOR CO.
  4. Number the solenoids 1 through 7 and number the main control solenoid ports 1 through 7 to correspond to the solenoid. Pull the solenoids out of the main control valve body.
    5. NOTE: Note of the location of the 4 longer main control bolts for assembly.

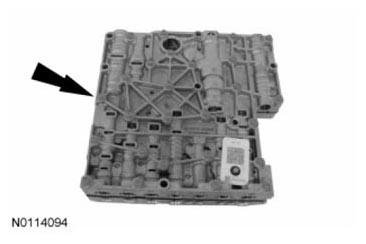

    Fig 5: Locating Main Control Bolts
    G07483359Courtesy of FORD MOTOR CO.
  5. Remove the 26 main control bolts from the main control.
    6. NOTE: Many components and surfaces in the main control valve body are precision machined. Use care when handling the upper and lower valve body or damage can occur to the machined surfaces.
    NOTE: The main control is positioned on the lower valve body before separating the upper valve body from the lower valve body to keep the solenoid dampers from falling out of the lower valve body.

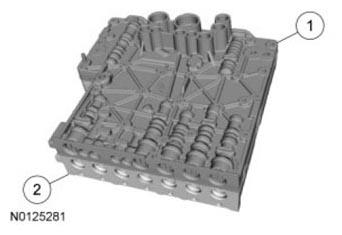

    Fig 6: Identifying Upper And Lower Valve Body
    G07483360Courtesy of FORD MOTOR CO.
  6. Position the main control on the lower valve body and separate the upper valve body from the lower valve body.
    1. Upper valve body
    2. Lower valve body
  7. Remove the 2 solenoid dampers from the lower valve body.

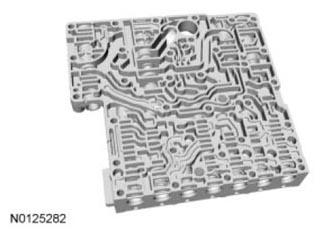

    Fig 7: Identifying Solenoid Dampers On Lower Valve Body
    G07483361Courtesy of FORD MOTOR CO.
  8. Remove the 2 bolts and remove the separator plate from the upper valve body assembly.

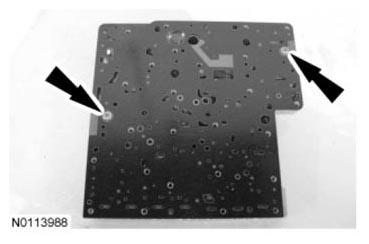

    Fig 8: Locating Separator Plate Bolts
    G07483362Courtesy of FORD MOTOR CO.
    9. NOTE: Note the location of the 3 check balls, the relief valves and the control valve inlet nozzle for assembly.

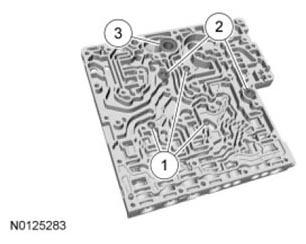

    Fig 9: Identifying Check Balls, Relief Valves And Pump Inlet Nozzle
    G07483363Courtesy of FORD MOTOR CO.
  9. Remove the 3 check balls, the 2 relief valves and the pump inlet nozzle.
    1. Check balls
    2. Relief valves
    3. Pump inlet nozzle
    10. NOTE: Note the location of the retaining clips, caps, valves and valve springs for assembly. Failure to install the components in the correct location will result in harsh/soft or no shifts or damage to the transmission.

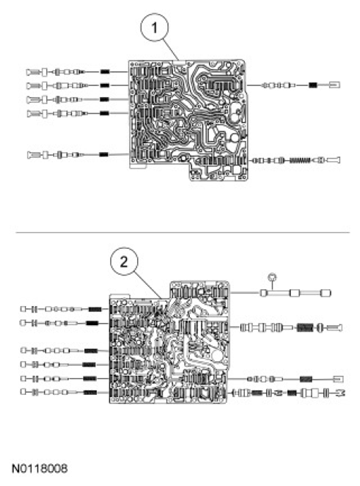

    Fig 10: Identifying Upper And Lower Valve Body
    G07483364Courtesy of FORD MOTOR CO.
  10. Remove the retaining clips, caps, valves and valve springs from each bore of the upper and lower valve body assembly. Note the location and order of the components for assembly.
    1. Upper valve body
    2. Lower valve body
