Special Tool(s): Notes
WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION CHART
| Forcing Screw 204-594 | |
| Remover/Installer, Rear Bearing 307-648 (Includes 307-648/1, 307-648/2, 307-648/3, 307-648/4) |

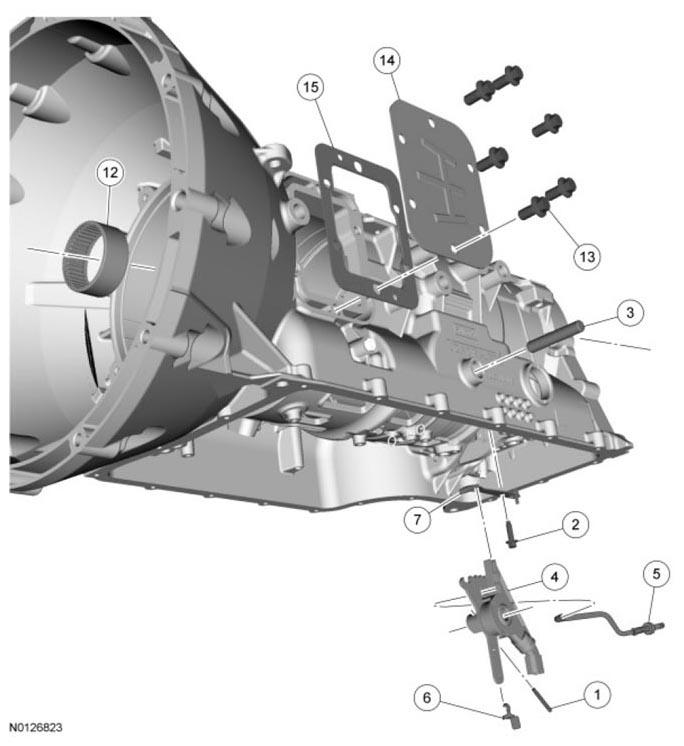

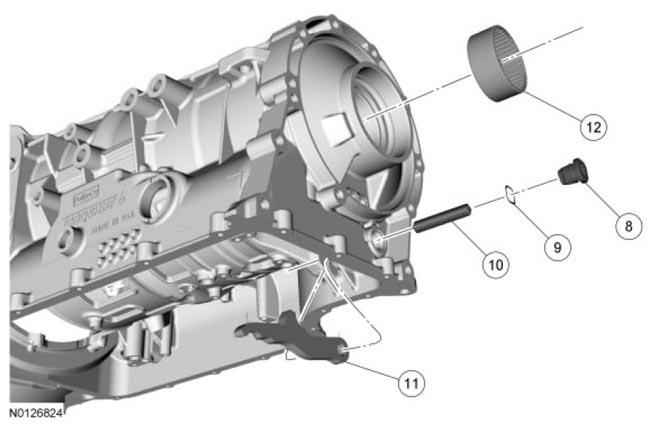

TRANSMISSION CASE PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7G100 | Manual shaft-to-Transmission Range (TR) sensor roll pin |
| 2 | W500214 | TR sensor detent spring bolt |
| 3 | 7C493 | Manual shaft |
| 4 | 7H557 | TR sensor |
| 5 | 7A232 | Park pawl actuator rod |
| 6 | - | Manual valve rod clip (part of 7H557) |
| 7 | 7E332 | TR sensor detent spring |
| 8 | 7G199 | Park pawl pin plug |
| 9 | - | Park pawl pin plug O-ring (part of 7G199) |
| 10 | 7D071 | Park pawl pin |
| 11 | 7A441 | Park pawl |
| 12 | 7A415 | Output shaft bearings (2 required) |
| 13 | W708587 | Power Take-Off (PTO) cover bolts (6 required) |
| 14 | 7222 | PTO cover |
| 15 | 7223 | PTO cover gasket |
