Special Tool(s): Disassembly

All vehicles

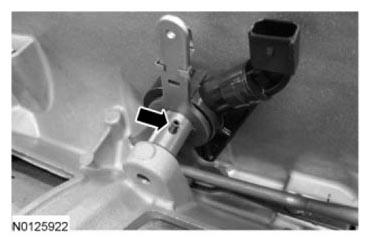

1. Using a punch, remove and discard the manual shaft-to- TR  sensor roll pin.
   Fig 1: Locating Manual Shaft-To-TR Sensor Roll Pin

   Courtesy of FORD MOTOR CO.

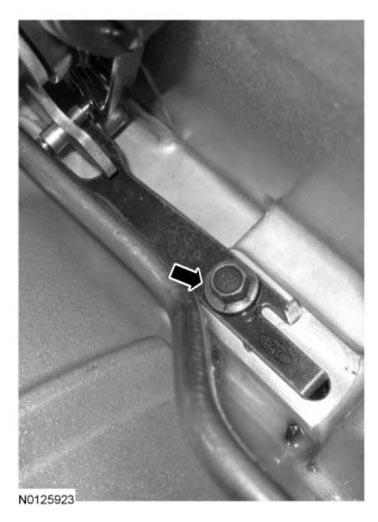

2. Loosen the TR  sensor detent spring bolt and the detent spring enough to remove the tension from the TR  sensor.
   Fig 2: Locating TR Sensor Detent Spring Bolt

   Courtesy of FORD MOTOR CO.

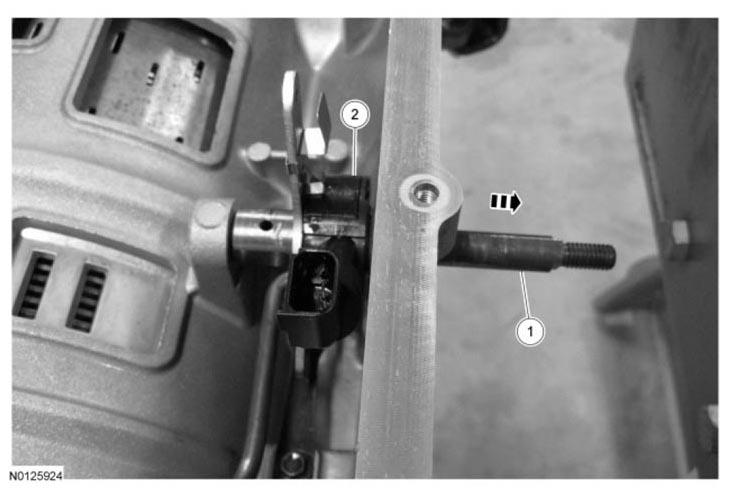

3. Slide the manual shaft out and remove the TR  sensor, park pawl actuator rod and the manual shaft.
   1. Manual shaft
   2. TR  sensor
   Fig 3: Sliding Manual Shaft

   Courtesy of FORD MOTOR CO.

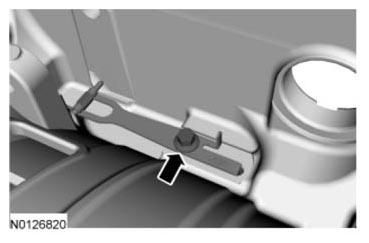

4. Remove the bolt and TR  sensor detent spring.
   Fig 4: Locating TR Sensor Detent Spring

   Courtesy of FORD MOTOR CO.

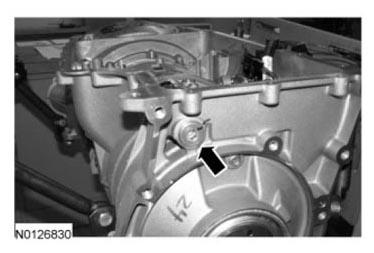

5. Remove the park pawl pin plug.
   Fig 5: Locating Park Pawl Pin Plug

   Courtesy of FORD MOTOR CO.
6. Remove the park pawl pin and the park pawl.
   Fig 6: Locating Park Pawl And Pin

   Courtesy of FORD MOTOR CO.

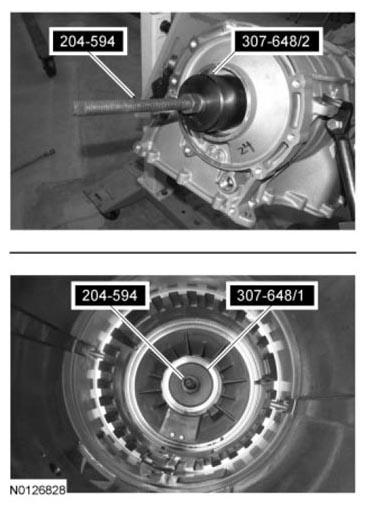

7. Install the Rear Bearing Remover/Installer on the rear bearing with the Forcing Screw and remove the inner and outer output shaft bearings.
   Fig 7: Removing Inner And Outer Output Shaft Bearings

   Courtesy of FORD MOTOR CO.

   Vehicles equipped with Power Take-Off (PTO)

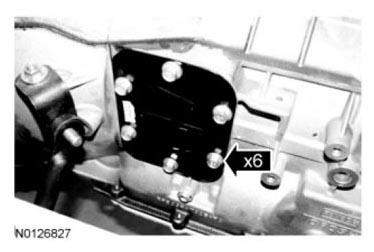

8. Remove and discard the 6 PTO  cover bolts, the PTO  cover and gasket.
   Fig 8: Locating PTO Cover Bolts

   Courtesy of FORD MOTOR CO.
