Intermediate (2,6) Clutch Assembly

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

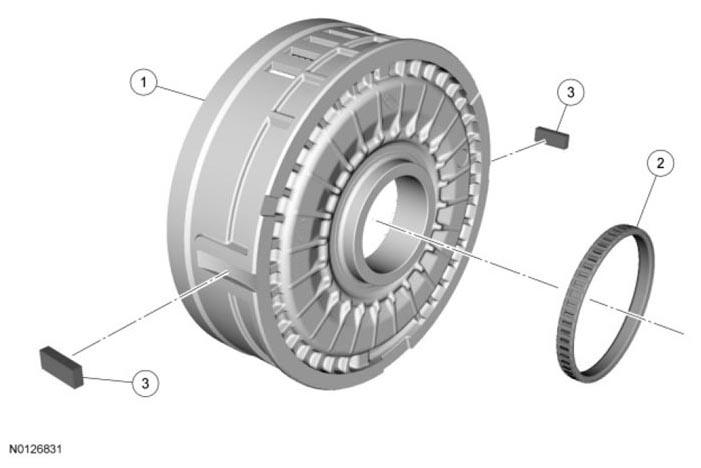

Fig 1: Exploded View Of Intermediate (2,6) Clutch Assembly
G07483380Courtesy of FORD MOTOR CO.
INTERMEDIATE (2,6) CLUTCH ASSEMBLY PARTS DESCRIPTION CHART

Item Part Number Description
1 7A130 Center support
2 7F373 Center support bearing
3 - Center support alignment lugs (part of 7A130)
