Special Tool(s): Disassembly

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a suitable tool to break the bearing cage. Using the Bearing Puller, gently pry the bearing race off of the center support.

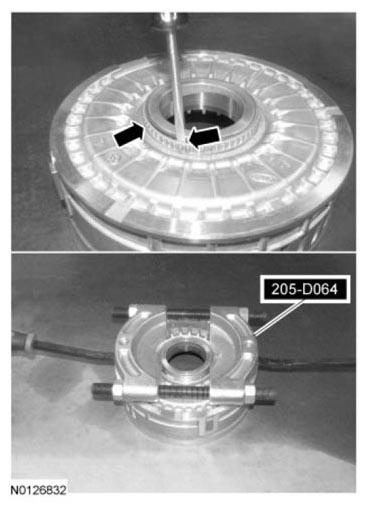

    Fig 1: Removing Bearing Race Of Center Support By Using Required Tools
    G07483381Courtesy of FORD MOTOR CO.
